Cell

Cell with measurement

Cell

Library

Modelica/Electrical/Batteries/BatteryStacksWithSensors

This is a single cell[Np=1, Ns=1] with measurement.

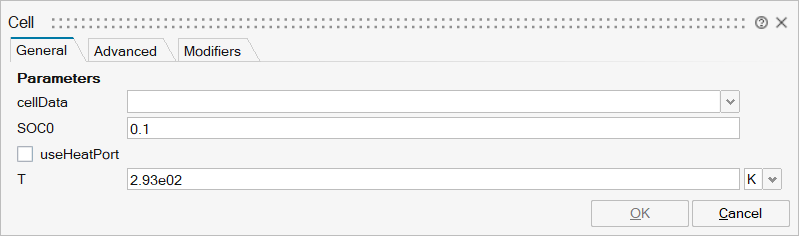

Cell_0

Name	Label	Description	Data Type	Valid Values
mo_cellData	cellData	Cell parameters		FromModelica('Modelica.Electrical.Batteries.ParameterRecords.CellData') FromModelica('Modelica.Electrical.Batteries.ParameterRecords.ExampleData') FromModelica('Modelica.Electrical.Batteries.ParameterRecords.TransientData.CellData') FromModelica('Modelica.Electrical.Batteries.ParameterRecords.TransientData.ExampleData')
mo_SOC0	SOC0	Initial SOC	Scalar
mo_useHeatPort	useHeatPort	=true, if HeatPort is enabled	Number	0 1
mo_T	T	Fixed device temperature if useHeatPort = false	Scalar

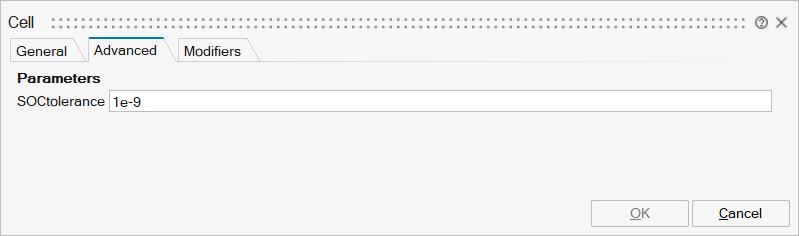

Cell_1

Name	Label	Description	Data Type	Valid Values
mo_SOCtolerance	SOCtolerance	SOC tolerance for detection of depleted or overcharged cell	Scalar

Name

Label

Description

Data Type

Valid Values

mo_SOCtolerance

SOCtolerance

SOC tolerance for detection of depleted or overcharged cell

Scalar

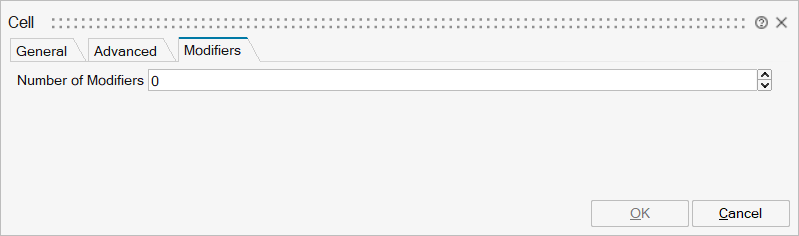

Cell_2

Name	Label	Description	Data Type	Valid Values
mo__nmodifiers	Number of Modifiers	Specifies the number of modifiers	Number
mo__modifiers	Modifiers	Add new modifier	Structure
mo__modifiers/varname	Variable name		Cell of strings	'displaySOC' 'v' 'i' 'power' 'SOC'
mo__modifiers/attribute	Attribute		Cell of strings	'start' 'fixed'
mo__modifiers/value	Value

Name	Type	Description	IO Type	Number
p	implicit	Positive electrical pin	input	1
n	implicit	Negative electrical pin	output	1
cellBus	implicit	Cell bus	input	2
Port 4	implicit	Optional port to which dissipated losses are transported in form of heat	input	mo_useHeatPort
