IdealGear
Ideal gear without inertia
Library
Modelica/Mechanics/Rotational/Components
Description
This element characterizes any type of gear box which is fixed in theground and which has one driving shaft and one driven shaft.The gear is ideal, i.e., it does not have inertia, elasticity, dampingor backlash. If these effects have to be considered, the gear has to beconnected to other elements in an appropriate way.

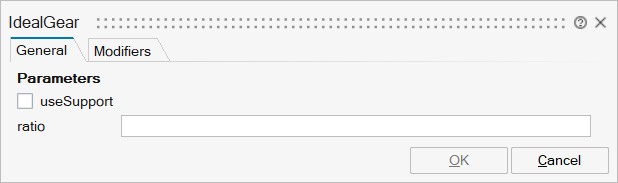

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useSupport | useSupport | = true, if support flange enabled, otherwise implicitly grounded | Number | 0 |
mo_ratio | ratio | Transmission ratio (flange_a.phi/flange_b.phi) | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

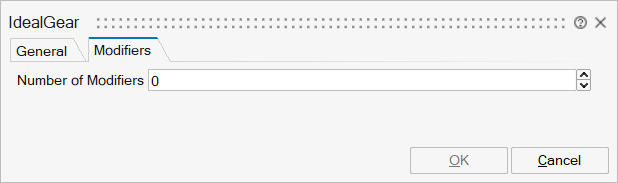

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'phi_support' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
flange_a | implicit | Flange of left shaft | input | 1 |
flange_b | implicit | Flange of right shaft | output | 1 |
Port 3 | implicit | Support/housing of component | input | mo_useSupport |
