GenericHystTellinenTable
Generic flux tube with ferromagnetic hysteresis based on the Tellinen model and table data
Library
Modelica/Magnetic/FluxTubes/Shapes/HysteresisAndMagnets
Description
Flux tube element for modeling magnetic materials with ferromagnetic and dynamic hysteresis (eddy currents). The ferromagnetic hysteresis behavior is defined by the Tellinen hysteresis model. The rising and falling branch of the limiting ferromagnetic hysteresis loop are specified by table data. Therefore, almost any hysteresis shapes are possible. A library with predefined tables can be found at FluxTubes.Material.HysteresisTableData.
An overview of all available hysteresis and permanent magnet elements of the package HysteresisAndMagnets can be found in UsersGuide.Hysteresis.

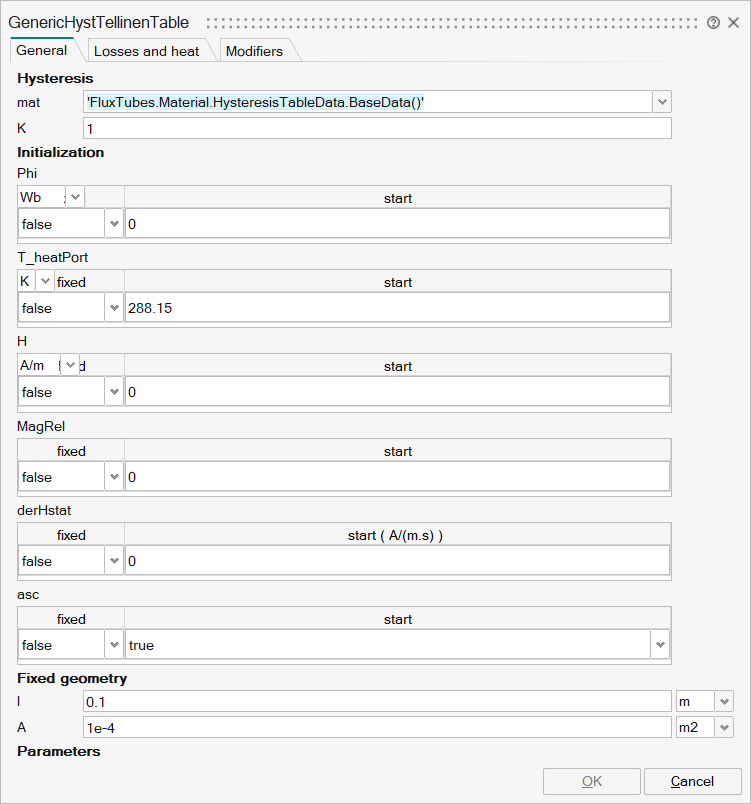

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_mat | mat | Material properties | FromModelica('Modelica.Magnetic.FluxTubes.Material.HysteresisTableData.BaseData') | |
mo_K | K | Slope of hysteresis in the saturation region (K*mu_0) | Scalar | |
mo_Phi | Phi | Phi | Structure | |
mo_Phi/fixed | fixed | Cell of scalars | true | |
mo_Phi/start | start | Cell of scalars | ||
mo_T_heatPort | T_heatPort | T_heatPort | Structure | |
mo_T_heatPort/fixed | fixed | Cell of scalars | true | |
mo_T_heatPort/start | start | Cell of scalars | ||
mo_H | H | H | Structure | |
mo_H/fixed | fixed | Cell of scalars | true | |
mo_H/start | start | Cell of scalars | ||
mo_MagRel | MagRel | MagRel | Structure | |
mo_MagRel/fixed | fixed | Cell of scalars | true | |
mo_MagRel/start | start | Cell of scalars | ||
mo_derHstat | derHstat | derHstat | Structure | |
mo_derHstat/fixed | fixed | Cell of scalars | true | |
mo_derHstat/start | start | Cell of scalars | ||
mo_asc | asc | asc | Structure | |
mo_asc/fixed | fixed | Cell of scalars | true | |
mo_asc/start | start | Cell of scalars | true | |
mo_l | l | Length in direction of flux | Scalar | |
mo_A | A | Area of cross section | Scalar | |
mo_V | V | Volume of FluxTube | Scalar | |
mo_eddyCurrentFactor | eddyCurrentFactor | Scalar | ||
mo_mu0 | mu0 | Scalar | ||
mo_eps | eps | Scalar |

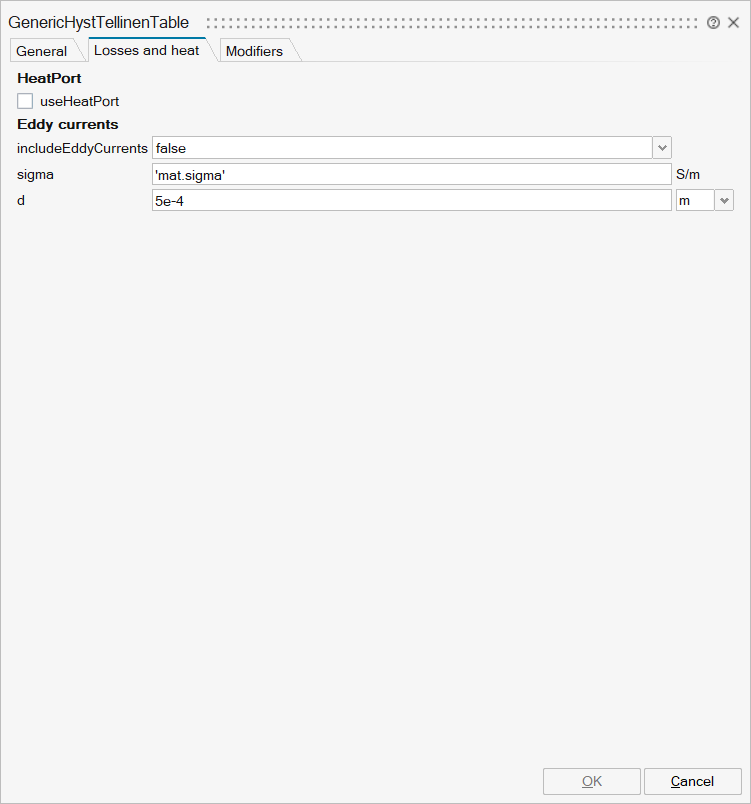

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useHeatPort | useHeatPort | = true, if HeatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar | |
mo_includeEddyCurrents | includeEddyCurrents | = true, if eddy current losses are enabled | Scalar | true |
mo_sigma | sigma | Conductivity of core material | Scalar | |
mo_d | d | Thickness of lamination | Scalar |

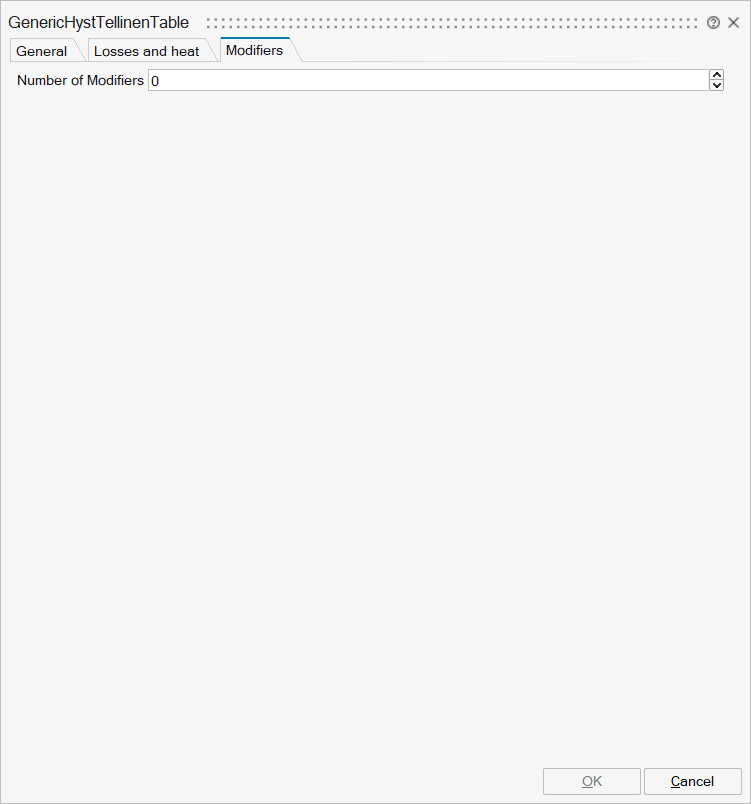

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'V_m' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive magnetic port | input | 1 |
port_n | implicit | Negative magnetic port | output | 1 |
Port 3 | implicit | input | mo_useHeatPort |
