IdealTransformer

Ideal transformer

IdealTransformer

Library

Modelica/Electrical/QuasiStatic/SinglePhase/Ideal

The ideal transformer is a two-port circuit element without magnetization. Voltages and currents are ideally transformed:

v1 =  v2*n;i2 = -i1*n;

where n is a real number called the turns ratio.

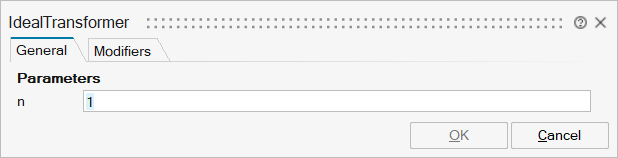

IdealTransformer_0

Name	Label	Description	Data Type	Valid Values
mo_n	n	Ratio of primary to secondary voltage	Scalar

Name

Label

Description

Data Type

Valid Values

mo_n

Ratio of primary to secondary voltage

Scalar

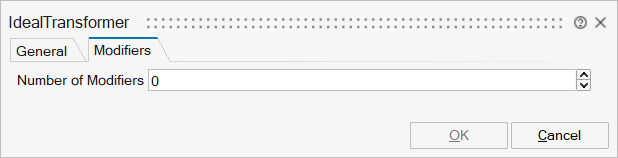

IdealTransformer_1

Name	Label	Description	Data Type	Valid Values
mo__nmodifiers	Number of Modifiers	Specifies the number of modifiers	Number
mo__modifiers	Modifiers	Add new modifier	Structure
mo__modifiers/varname	Variable name		Cell of strings	'abs_v1' 'arg_v1' 'abs_i1' 'arg_i1' 'P1' 'Q1' 'S1' 'pf1' 'abs_v2' 'arg_v2' 'abs_i2' 'arg_i2' 'P2' 'Q2' 'S2' 'pf2'
mo__modifiers/attribute	Attribute		Cell of strings	'start' 'fixed'
mo__modifiers/value	Value

Name	Type	Description	IO Type	Number
pin_p1	implicit	Primary positive pin	input	1
pin_p2	implicit	Secondary positive pin	input	2
pin_n1	implicit	Primary negative pin	output	1
pin_n2	implicit	Secondary negative pin	output	2
