VariableConductor
Polyphase variable conductor
Library
Modelica/Electrical/QuasiStatic/Polyphase/Basic
Description
The linear resistors connect the complex currents i with the complexvoltages v by v*G = i,using m single-phase variable Conductors.The conductances G are given as m input signals.
The conductor model also has m optionalconditional heat ports.A linear temperature dependency of the conductances is also taken into account.
See also
VariableConductor,Resistor,Conductor,Capacitor,Inductor,Impedance,Admittance,Variable resistor,Variable capacitor,Variable inductorVariable impedance,Variable admittance

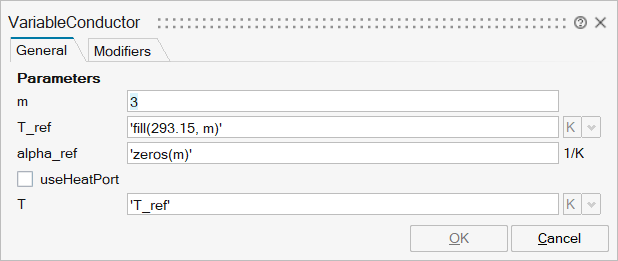

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar | |
mo_T_ref | T_ref | Reference temperatures | Vector | |
mo_alpha_ref | alpha_ref | Temperature coefficient of resistance (G_actual = G_ref/(1 + alpha_ref*(heatPort.T - T_ref)) | Vector | |
mo_mh | mh | Number of heatPorts=number of phases | Scalar | |
mo_useHeatPort | useHeatPort | = true, if all heat ports are enabled | Number | 0 |
mo_T | T | Fixed device temperatures if useHeatPort = false | Vector |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

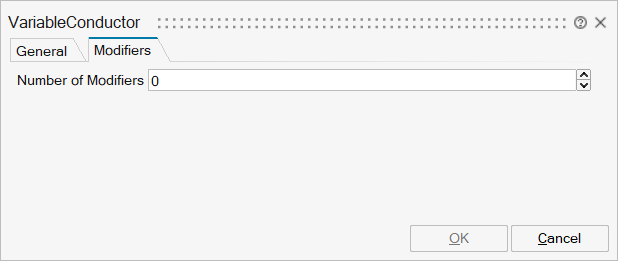

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'omega' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | Positive quasi-static polyphase plug | input | 1 |
plug_n | implicit | Negative quasi-static polyphase plug | output | 1 |
G_ref | implicit | Variable conductance | input | 2 |
Port 4 | implicit | Conditional heat ports | input | mo_useHeatPort |
