PermanentMagnetWithLosses
Permanent magnet excitation
Library
Modelica/Electrical/Machines/BasicMachines/Components
Description
Model of a permanent magnet excitation with loss, characterized by an equivalent excitation current.Parameters

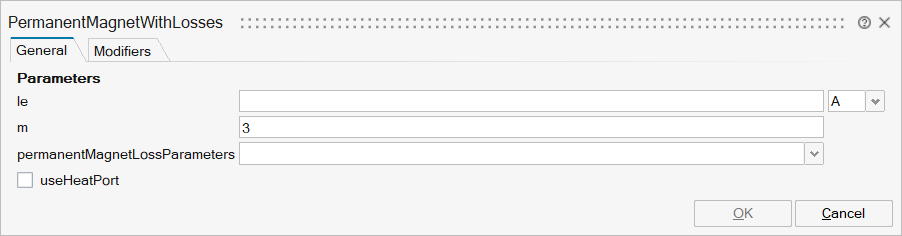

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Ie | Ie | Equivalent excitation current | Scalar | |
mo_m | m | Number of phases | Scalar | |
mo_permanentMagnetLossParameters | permanentMagnetLossParameters | Permanent magnet loss parameters | FromModelica('Modelica.Electrical.Machines.Losses.PermanentMagnetLossParameters') | |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

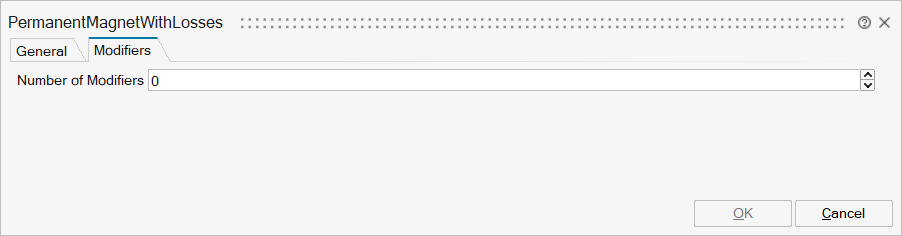

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'phi' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
spacePhasor_r | implicit | input | 1 | |
flange | implicit | Shaft end | input | 2 |
support | implicit | Housing and support | input | 3 |
Port 4 | implicit | Optional port to which dissipated losses are transported in form of heat | input | mo_useHeatPort |
