DamperCage
Squirrel Cage
Library
Modelica/Electrical/Machines/BasicMachines/Components
Description
Model of an asymmetrical damper cage in two axis.
The damper cage has an optional (conditional) HeatPort,which can be enabled or disabled by the Boolean parameter useHeatPort.Temperatures of both axis are the same, both losses are added.Material properties alpha can be set differently for both d- and q-axis,although reference temperature for both resistances is the same.
Parameters

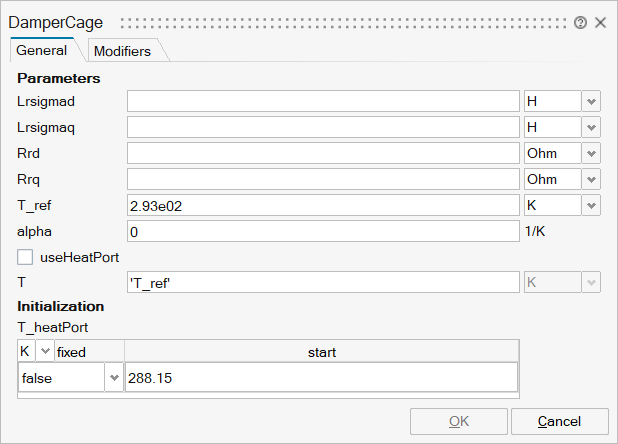

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Lrsigmad | Lrsigmad | Stray inductance in d-axis per phase translated to stator | Scalar | |
mo_Lrsigmaq | Lrsigmaq | Stray inductance in q-axis per phase translated to stator | Scalar | |
mo_Rrd | Rrd | Resistance in d-axis per phase translated to stator at T_ref | Scalar | |
mo_Rrq | Rrq | Resistance in q-axis per phase translated to stator at T_ref | Scalar | |
mo_T_ref | T_ref | Reference temperature of both resistances in d- and q-axis | Scalar | |
mo_alpha | alpha | Temperature coefficient of both resistances in d- and q-axis at T_ref | Scalar | |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar | |
mo_T_heatPort | T_heatPort | T_heatPort | Structure | |
mo_T_heatPort/fixed | fixed | Cell of scalars | true | |
mo_T_heatPort/start | start | Cell of scalars |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

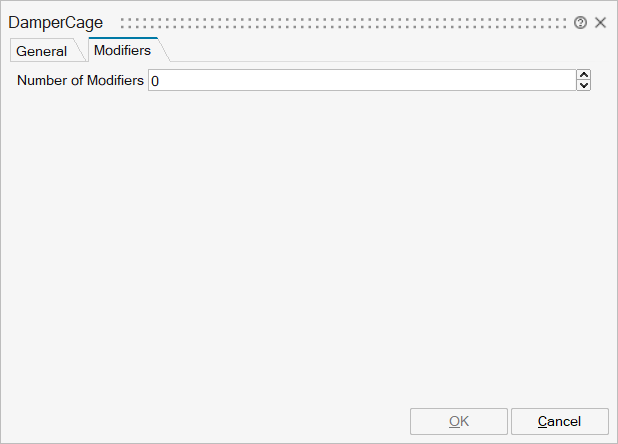

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'LossPower' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
spacePhasor_r | implicit | input | 1 | |
Port 2 | implicit | Conditional heat port | input | mo_useHeatPort |
