AirGapDC
Linear airgap model of a DC machine
Library
Modelica/Electrical/Machines/BasicMachines/Components
Description
Linear model of the airgap (without saturation effects) of a DC machine, using only equations.Induced excitation voltage is calculated from der(flux), where flux is defined by excitation inductance times excitation current.
Induced armature voltage is calculated from flux times angular velocity.
Parameters

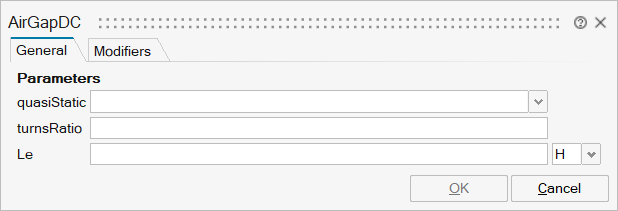

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_quasiStationary | quasiStationary | No electrical transients if true | Scalar | true |
mo_turnsRatio | turnsRatio | Ratio of armature turns over number of turns of the excitation winding | Scalar | |
mo_Le | Le | Excitation inductance | Scalar |

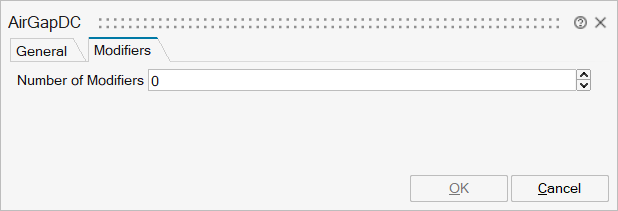

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'w' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
flange | implicit | input | 1 | |
support | implicit | Support at which the reaction torque is acting | input | 2 |
pin_ap | implicit | input | 3 | |
pin_ep | implicit | input | 4 | |
pin_an | implicit | output | 1 | |
pin_en | implicit | output | 2 |
