Diode
Simple diode with heating port
Library
Modelica/Electrical/Analog/Semiconductors
Description
The simple diode is an electrical one port, where a heat port is added, which isdefined in the Modelica.Thermal library. It consists of the diode itself and a parallel ohmicresistance R. If useTemperatureDependency is set to true, the diode formula is:
where vt_t depends on the temperature of the heat port:v/N/vt_ti = Ids (e - 1)
vt_t = k*temp/q
If useTemperatureDependency is set to false, the diode formula utilizes the voltage equivalent of the temperature, i.e.,
v/Vti = Ids (e - 1).
If the exponent v/N/vt_t or v/Vt, respectively, reaches the limit Maxexp, the diode characteristic is linearly continued to avoid overflow.
The thermal power is calculated by i*v.
Parameters

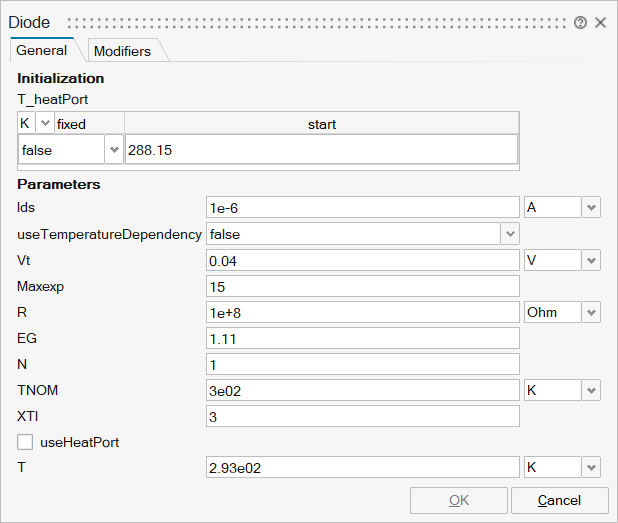

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_T_heatPort | T_heatPort | T_heatPort | Structure | |
mo_T_heatPort/fixed | fixed | Cell of scalars | true | |
mo_T_heatPort/start | start | Cell of scalars | ||
mo_htemp | htemp | htemp | Structure | |
mo_htemp/fixed | fixed | Cell of scalars | true | |
mo_htemp/start | start | Cell of scalars | ||
mo_Ids | Ids | Saturation current | Scalar | |
mo_useTemperatureDependency | useTemperatureDependency | = true, if the diode current depends on temperature, otherwise utilizes the voltage equivalent of temperature | Scalar | true |
mo_Vt | Vt | Voltage equivalent of temperature (kT/qn) | Scalar | |
mo_Maxexp | Maxexp | Max. exponent for linear continuation | Scalar | |
mo_R | R | Parallel ohmic resistance | Scalar | |
mo_EG | EG | Activation energy | Scalar | |
mo_N | N | Emission coefficient | Scalar | |
mo_TNOM | TNOM | Parameter measurement temperature | Scalar | |
mo_XTI | XTI | Temperature exponent of saturation current | Scalar | |
mo_useHeatPort | useHeatPort | = true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |

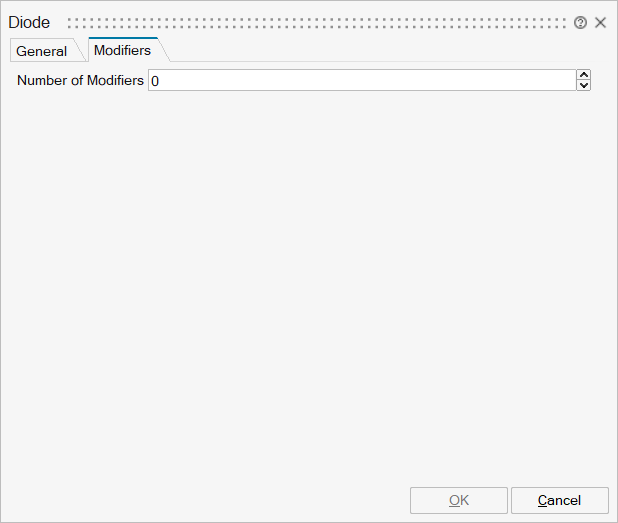

mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
p | implicit | Positive electrical pin | input | 1 |
n | implicit | Negative electrical pin | output | 1 |
Port 3 | implicit | Conditional heat port | input | mo_useHeatPort |
