PropValve33LSTableQpx
Library
HydraulicsByFluidon/Components/Valves/DirectionalValves/LSDirectionalValves
Description

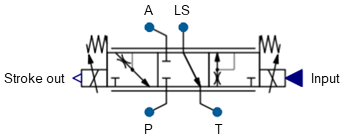

The component PropValve33LSTableQpx is a model of a 3-way proportional valve where the stroke follows the input signal with a 2nd order delay. In addition to PropValve33PT2TableQpx, it has a fourth port (LS) connected to port A or port T, depending on the stroke.
The hydraulic parameterization of the valve is done by providing a look-up table of the flow rate as a function of the pressure drop and the input signal. Each of the two meetering edges is parameterised with a separate look-up table given by the user. Further information regarding the formatting of the look-up table can be found in the documentation of the component ResistorTableQpx. Unlike the Resistor component, the look-up table for valve edges is declared for the input range from -1 to 1.
For a positive stroke (right position) the flow is function of input signal (starting from 0 to Input value for 100 % open) and the pressure difference across the valve edge. In case of a negative stroke (left position) the same applies for input from 0 to -Input value for 100 % open.
The valve stroke can be shifted by Relative overlap general. In accordance with common valve parameters a negative overlap will open the valve edge. Relative overlap general is applied to all valve edges simultaneously. If at least one of the edge-specific values, e. g. Relative overlap PA or -AT is set to a value different from 0, then the Relative overlap general is ignored and the individual overlaps are used.
Port LS is connected to port A if Stroke > Relative stroke at which the LS port is switched, else port LS is connected to port T. Pressure at port LS follows pressure at A, B or T with first order delay with Time constant of LS signal.
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_inputMax | inputMax | Input value for 100 % open | Scalar | |
mo_angFreq | angFreq | Angular frequency | Scalar | |
mo_damping | damping | Damping | Scalar | |
mo_vMax | vMax | max. Velocity | Scalar | |
mo_vMin | vMin | min. Velocity | Scalar | |
mo_enableStrokeOut | enableStrokeOut | Enable Stroke Output | Number | 0 |
mo_inputMaxPartial | inputMaxPartial | Scalar | ||
mo_forwardFluidPropertiesBT | forwardFluidPropertiesBT | Scalar | true | |
mo_deadVolume | deadVolume | Dead volume at ports | Scalar | |
mo_pP | pP | pP | Structure | |
mo_pP/fixed | fixed | Cell of scalars | true | |
mo_pP/start | start | Cell of scalars | ||
mo_pT | pT | pT | Structure | |
mo_pT/fixed | fixed | Cell of scalars | true | |
mo_pT/start | start | Cell of scalars | ||
mo_pA | pA | pA | Structure | |
mo_pA/fixed | fixed | Cell of scalars | true | |
mo_pA/start | start | Cell of scalars | ||
mo_pLS | pLS | pLS | Structure | |
mo_pLS/fixed | fixed | Cell of scalars | true | |
mo_pLS/start | start | Cell of scalars | ||
mo_initType | initType | Type of initialization (1: no init, 2: steady state, 3/4: initial output) | Structure | |
mo_initType/choice1 | Modelica.Blocks.Types.Init.NoInit | Number | 0 | |
mo_initType/choice2 | Modelica.Blocks.Types.Init.SteadyState | Number | 0 | |
mo_initType/choice3 | Modelica.Blocks.Types.Init.InitialState | Number | 0 | |
mo_initType/choice4 | Modelica.Blocks.Types.Init.InitialOutput | Number | 0 | |
mo_Stroke | Stroke | Stroke | Structure | |
mo_Stroke/fixed | fixed | Cell of scalars | true | |
mo_Stroke/start | start | Cell of scalars | ||
mo_Velocity | Velocity | Velocity | Structure | |
mo_Velocity/fixed | fixed | Cell of scalars | true | |
mo_Velocity/start | start | Cell of scalars |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_ReferenceDensity | ReferenceDensity | Reference density | Scalar | |
mo_Overlap | Overlap | Valve edge general relative overlap | Scalar | |
mo_OverlapPA | OverlapPA | Valve edge PA relative overlap | Scalar | |
mo_OverlapAT | OverlapAT | Valve edge AT relative overlap | Scalar | |
mo_timeConstLS | timeConstLS | Time constant of LS signal | Scalar | |
mo_switchBand | switchBand | Relative stroke at which the LS port is switched | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_fileNamePA | fileNamePA | File where look-up table is stored | String | |
mo_tableNamePA | tableNamePA | Table name on file | String |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_fileNameAT | fileNameAT | File where look-up table is stored | String | |
mo_tableNameAT | tableNameAT | Table name on file | String |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'volumeFlowP' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
portLS | implicit | Hydraulic port LS | input | 1 |
portP | implicit | Hydraulic port P | input | 2 |
portT | implicit | Hydraulic port T | input | 3 |
portA | implicit | Hydraulic port A | input | 4 |
Input | implicit | Set value of valve position | input | 5 |
Port 6 | implicit | Valve Stroke | output | mo_enableStrokeOut |
