GetSignal
This block receives signals from a corresponding SetSignal block by connecting the regular ports of the blocks without using a link. A single SetSignal block can send signals to multiple GetSignal blocks, but a GetSignal block can receive signals from only one SetSignal block.
Library
Activate/Routing
Description
The GetSignal block connects bus ports from one block to another without connecting them physically. It is used with a SetSignal block. A simple SetSignal block can send data to multiple GetSignal, although a GetSignal can receive data from only one SetSignal. SetSignal transports its input data to its corresponding GetSignal block.
The scoping of a signal is defined by the SetSignal block. A GetSignal will search first to a local signal then to a scoped signal and at the end to a global one.

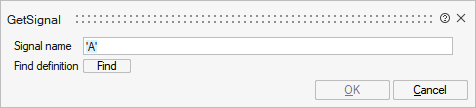

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
tag | Signal name | Signal name. | String |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | output | 1 |
