Coupled Solution

Solution "folder or load case" > Right click > Include "result component"

Introduction

Multi-physics analysis can be performed by mapping results of one Solution to another regardless of mesh difference.

Description

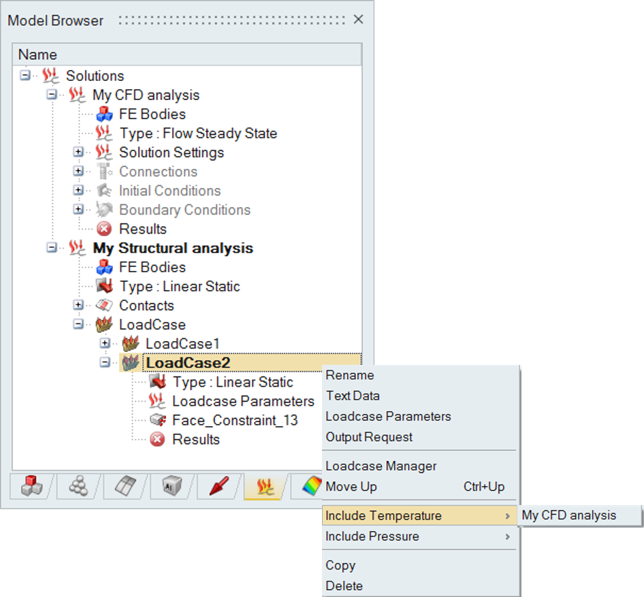

  1. Set the solution or load case where the boundary condition has to be included as current and right click to get the list of result component which can be included as boundary condition.
  2. Then select the respective solution or load case from which the result should be included.
    1. In case the reference solution has result data computed, the boundary condition will be created with the mapped data.
    2. If the result data is not present, the boundary condition will be created without the mapped data. However when the solution is solved, it will solve the reference solution whose results data is to be mapped, then updates the load with mapped results and solve the solution.
  3. The mapped boundary condition can be reviewed by using right click > Show contour option.
  4. Also external result data imported in SimLab will be created as a solution. This result data can also be used to create boundary conditions using the same approach.

Supported result types

Result Component From Solution To Solution As Boundary condition
Temperature Heat transfer (steady state, non-linear or transient) analysis / flow steady state analysis Linear / non-linear / normal mode analysis Temperature load
Heat transfer (steady state, non-linear or transient) analysis / flow steady state analysis Heat transfer (steady state, non-linear or transient) analysis Temperature constraint
Heat transfer (steady state, non-linear or transient) analysis / Flow (steady state analysis or transient) analysis Flow (steady state analysis or transient) analysis / transient heat transfer analysis Initial condition
Pressure Flow steady state analysis Linear / non-linear analysis Pressure load
Flow steady state analysis / Flow transient analysis Flow steady state analysis / Flow transient analysis Initial condition / Nodal Boundary condition
Stress Linear / non-linear analysis Non-linear analysis Initial condition
Velocity Flow steady state analysis / Flow transient analysis Flow steady state analysis / Flow transient analysis Initial condition / Nodal Boundary condition
Eddy Viscosity Flow steady state analysis / Flow transient analysis Flow steady state analysis / Flow transient analysis Initial condition
Modal Displacement Normal mode analysis Flow Steady state / flow transient analysis Mesh displacement (Flexible body)
Fiber Orientation Injection Molding analysis Linear/ Non- Linear / Normal Mode analysis Polymer material with fiber orientation
Heat Loss Multi State Electric Conduction Steady State Electric Conduction
Transient heat transfer analysis Heat transfer (steady state, non-linear) analysis / Flow (steady state analysis or transient) analysis
Magnetic Transient 2D analysis
AC Supplied Conductors
Joule Loss Steady State Electric Conduction Heat transfer (steady state, non-linear) analysis Heat source
Multi State Electric Conduction Transient heat transfer analysis
Magnetic Transient 2D analysis Heat transfer (steady state, non-linear) analysis / Flow (steady state analysis or transient) analysis
AC Supplied Conductors
Transfer results Linear/Non-linear static analysis Drop test Solver settings (Solver option: Include results from solution”)
Maxwell pressure Magnetic Transient 2D analysis Modal frequency / E-Motor Acoustic analysis Modal frequency / Normal mode load cases, Excitation load.
Force AC Supplied Conductors Linear / non-linear analysis
Displacement (Submodeling) Linear static Linear static
Non-linear static Non-linear static
Modal FRF Modal FRF
