Using the Dashboard Templates

You can start your dashboard design by using the available dashboard templates of the selected workbook theme.

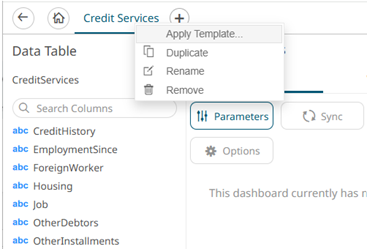

  1. Right-click on a new dashboard and select Apply Template.

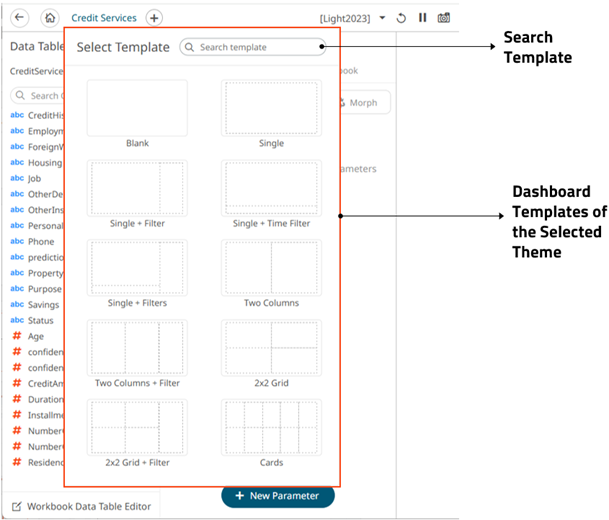

  2. In the Select Template pane, click a dashboard template from the selected theme (i.e., Light2023).

    To search for a particular template, enter it into the Search Template box. You can also enter one or more characters into the Search Template box and the suggested list of templates that matched the entries will be displayed.

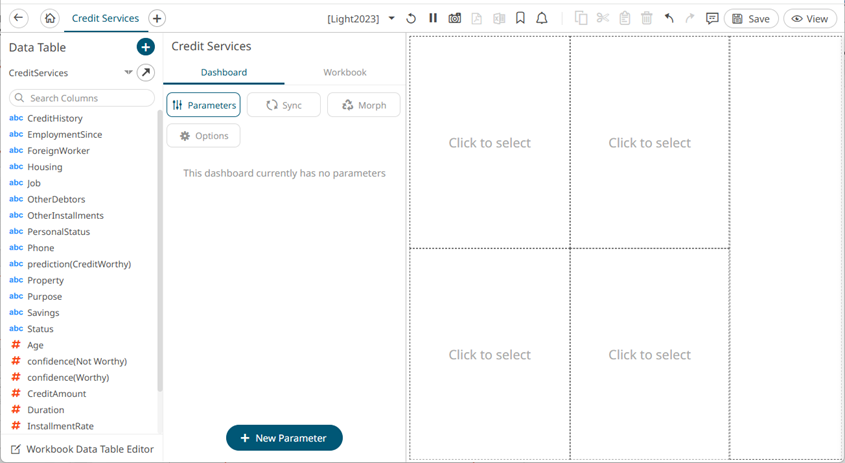

    The corresponding parts of the selected template (e.g., 2x2 Grid + Filter) are displayed.

  3. Click the parts and define their properties on the Part Types pane.
