Table Column Filtering

Instead of using a Filter Box, you can right-click on a table column header and select Filter to perform filtering.

The dialog box that displays will depend on the data column type.

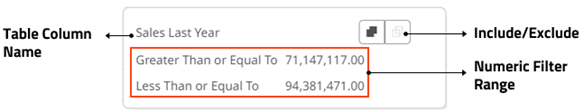

  • For numeric columns

    Enter the numeric range filter then click either:

    • Include to include the entered range, or
    • Exclude to exclude the entered range.

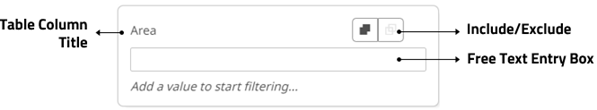

  • For text columns

    This text entry box is the same as the filter in lncude/Exclude mode.

    When you enter a value in the Free Text Entry box, you can click   to clear the field.

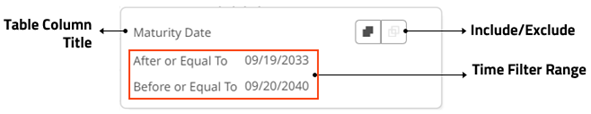

  • For time columns

    Enter the time range filter then click either:

    • Include to include the entered range, or
    • Exclude to exclude the entered range.



When a filter is applied on the table columns,   filter icons appear at these places:

  • To the right of the table column header

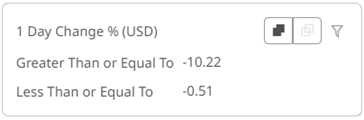

    Numeric column:

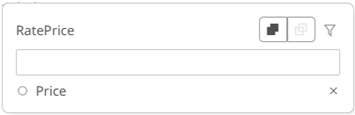

    Text column:

  • Table Header Control

  • Dashboard toolbar

  • Table Column Filter dialog

    Numeric column:

    Text column:

To remove the filter:

  • Click .
  • For text columns, you can also click .

 Also, Show Active Filters    icon displays on the Table Header Control. This allows viewing of all the active filters on the dashboard and its visualizations.
