Altair EEvision™

The EEvision GUI Main Features

The EEvision™ main GUI is started as a session by passing a URL to a Web Browser. This document describes the features, that come with the main GUI. In addition, there is an extendable set of plugins that can be added to the EEvision GUI for additional features.

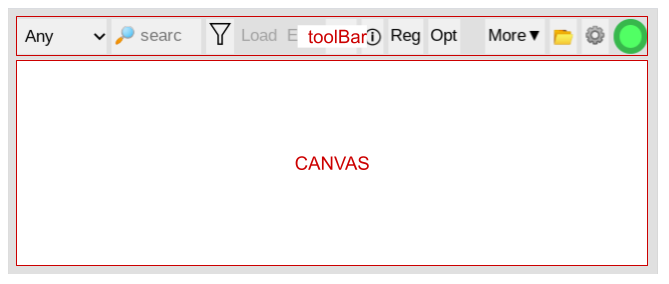

[screen dump] The HTML Structure

The EEvision main GUI is built on a static HTML structure that is dynamically extended or changed by JavaScript. The GUI consists of a toolbar, some dialog windows plus one big CANVAS element that renders the schematic diagram. The HTML structure is as follows (optionally with a class and/or an id):

HTML
  HEAD
    TITLE
    [...]
  BODY
    FIELDSET id=toolBar
      SELECT id=t_otype
      INPUT  id=t_search
      [...]
    DIV      id=settwin
    DIV      id=loading
    DIV      id=livesearch
    DIV      id=infowin
    DIV      id=errwin
    DIV      id=canvDIV
      CANVAS id=canv
    SCRIPT

The Toolbar

HTML
  BODY
    FIELDSET id=toolBar
      SELECT id=t_otype
      INPUT  id=t_search
      BUTTON id=t_smode
      BUTTON id=t_load           Load
      BUTTON id=t_extract        Extract
      BUTTON id=t_lnet           Net
      BUTTON id=t_info           ⓘ
      BUTTON id=t_regen          Regenerate
      BUTTON id=t_optim          Optimize
      BUTTON id=t_gmode          GM
      DIV    id=toolBar_right
        DIV  id=toolBar_pi
        DIV  id=toolBar_dropdown
          BUTTON   id=t_more     More▼
          DIV      id=t_menu
            BUTTON id=t_lall     Load All
            BUTTON               Print
            BUTTON               SVG
            BUTTON id=t_rot90    90°
            BUTTON id=t_log      Logical
            BUTTON id=t_block    Blocks
          BUTTON   id=t_home
          BUTTON   id=t_settings ⚙
          BUTTON   id=t_yellow disabled

Here is the complete HTML structure of the toolbar. Buttons from dynamically loaded plugins are inserted into the toolBar_pi container.

The Search Function

Object Selection

The Load Function

The Extract Function

The Net Mode

The Info Window

Regenerate and Optimize

More Functions

Settings Dialog
