EDB Creator API

The EDB is the database root. It manages all EDB objects and their relations. We divide the relations into “aggregation” – forming the containment tree – and “association” – storing the connectivity and other information.

The Containment Tree

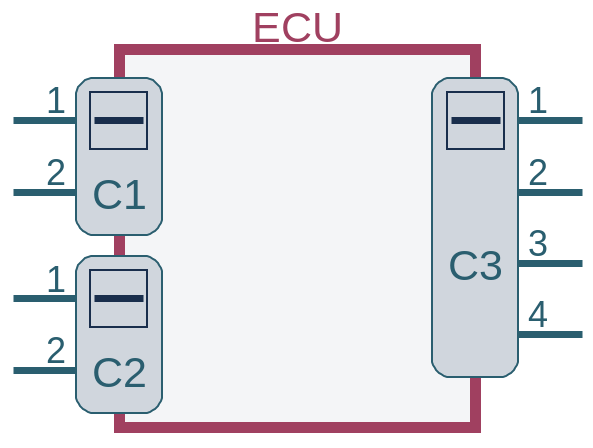

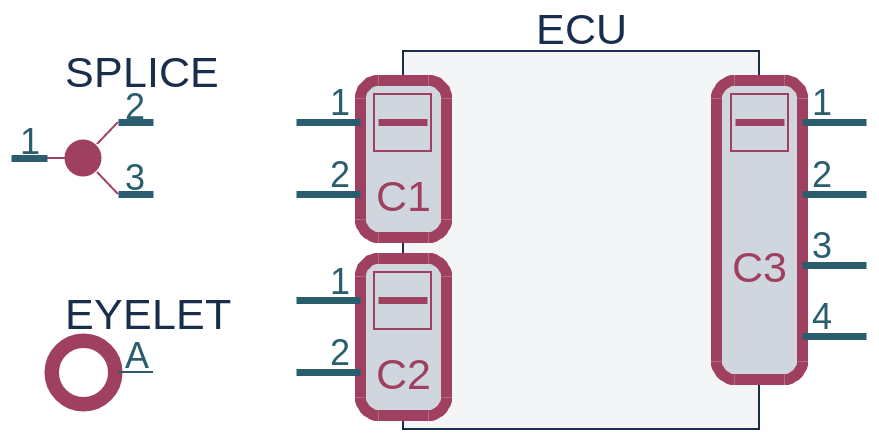

The database root contains components, wires, and multicores. Each Component object contains connectors, each Connector object contains cavities, and each Multicore object may contain nested multicores.

The parent relation of the EDB objects is as follows:

Object	Object's parent
Component	(database root)
Connector	Component
Cavity	Connector
Wire	(database root)
Multicore	(database root) or another Multicore
Module	(database root)

The Multicore's parent reference to the database root is technically modeled as NULL pointer.

The Connectivity

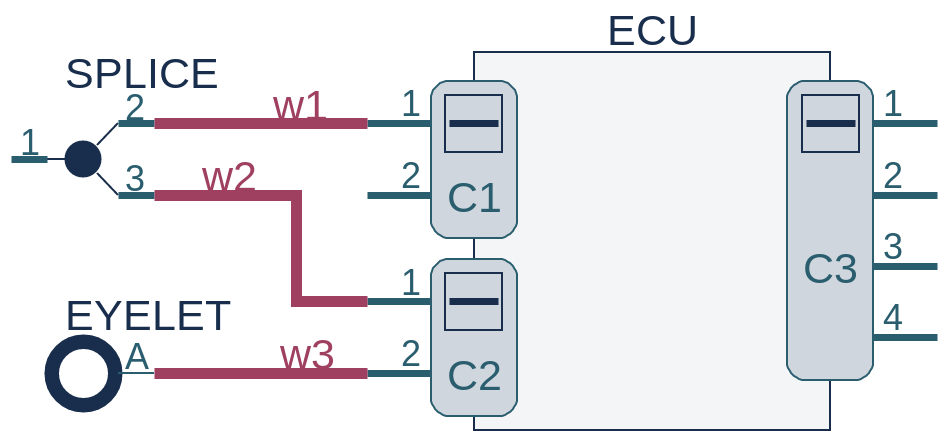

The electrical connectivity is defined by a n-to-m association between cavities and wires. A (physical) wire usually connects to two cavities. However, in order to model logical connectivity, wires can connect to an arbitrary number of cavities. A cavity connects to zero, one or multiple wires.

Two connectors of the same Inliner component can be set into relation (partner) representing the internal electrical connectivity between the left and right connector of an Inliner. Similarly, two cavities of two related connectors can also be related representing a direct electrical connection.

These relations are modeled with optional 1-to-1 associations between two connectors or two cavities, respectively, and are only supported for Inliner components.

The Grouping of Wires

The wire grouping is defined by a 1-to-n association between multicores and wires. The multicore tree is part of the Containment. However, the “leaves” of the multicore tree are just references to Wires (so the Wires themselves are not part of the Multicore-Containment tree, all Wires are aggregated in the database root).

The Modules

The Modules are optional. Each Module defines a (normally small) sub-set of the database by maintaining a list of references to objects of any type (except Modules).

The EDB Creator API consists of a set of creator functions, that are defined in the C header file edbcreate.h (use #include "edbcreate.h" to include the header file into your C application) and the Save/Restore functions are defined in the C header files edbsave.h and edbrestore.h. These functions are described in the following sections:

• Building the Containment Tree Structure
• Setting StrictMode Flags
• Adding Affinity group ids
• Adding Connectivity
• Grouping Wires to a Multicore
• Details about the Inliner Component
• Defining Hierarchy
• Defining Modules
• Save to a file
• Restore from a file
• An Example Program

Object Identification

The EDB objects' struct definitions are opaque (hidden from the user). That is, only the creator functions are available and necessary to fill the database. EDB objects are identified with C-pointers to anonymous structs, which may be NULL to indicate “no object” or error depending on the function. The anonymous EDB structs are defined as follows:

typedef struct Edb             Edb;
typedef struct EdbComponent    EdbComponent;
typedef struct EdbConnector    EdbConnector;
typedef struct EdbCavity       EdbCavity;
typedef struct EdbWire         EdbWire;
typedef struct EdbMulticore    EdbMulticore;
typedef struct EdbModule       EdbModule;

The creator functions' return value is either a pointer to an EDB struct or a Boolean value. In case of an error, the functions return NULL or false, respectively, and leave an error message in the EDB, which can be retrieved by calling “EdbLastError()”. The Boolean type is defined as:

enum EdbBool {
     EdbFalse = 0,
     EdbTrue  = 1
};

There is an optional second approach for object identification, that is persistent between save and restore, as described below at Object ID by Number.

---

Building the Containment Tree Structure

Edb*  EdbNew();
void  EdbDelete(Edb*);

The EdbNew function creates an empty database and returns a pointer, which clearly identifies the database and must be passed as first argument to all other API functions. Multiple databases are supported simultaneously.

The EdbDelete function first deletes the database's contents and then deletes the database root, which invalidates the Edb pointer.

EdbComponent* EdbNewComponent(Edb*,                const char*, EdbComponentType);
EdbConnector* EdbNewConnector(Edb*, EdbComponent*, const char*, EdbConnectorType);
EdbCavity*    EdbNewCavityEx( Edb*, EdbConnector*, const char*, EdbCavityType);

The NewComponent function creates a new Component object and adds it to the database root. The second argument specifies the component's name and may be NULL if there is no name to be displayed. The EdbComponentType specifies the Component's type: ECU, INLINER, SPLICE, etc. A Component includes an arbitrary number of connectors and is displayed as a rectangular box in the Nlview schematic. The INLINER Component needs some extra information and is displayed in a slightly different way, as described below.

The NewConnector function creates a new Connector object and adds it to the specified Component given as second argument. The connector's name is provided as third argument, and may be NULL if there is no name to be displayed. For an ECU or INLINER, a Connector models a group of connections like an electrical jack/plug respective a connector with multiple different electrical signals. In the Nlview schematic, it will be displayed as a part of a Component. For an INLINER, the EdbConnectorType specifies the Connector's side, that can be “UNDEF” or “ANTI” (see below). For a SPLICE or EYELET, a Connector models a group of electrically short-cut Cavities. In most cases a splice or eyelet has only one Connector, but may have multiple Connectors to model an array of eyelets or an array of splices. They will be displayed in the Nlview schematic as dedicated (typically small) symbols.

The NewCavity function creates a new Cavity object and adds it to the specified Connector (given as second argument). The cavity's name is provided as third argument, and may be NULL if there is no name to be displayed. A Cavity models a Connector's connection point. Each Cavity can connect to zero, one or multiple Wires. In the Nlview schematic, a Cavity will be displayed as a Connector pin. The EdbCavityType specifies the Cavity's appearance and behavior: UNDEF (normal), HALFDOT, SPLICED.

EdbWire*      EdbNewWireEx(   Edb*,                const char*, EdbWireType);
EdbMulticore* EdbNewMulticore(Edb*, EdbMulticore*, const char*, EdbMulticoreType);

The NewWire function creates a new Wire object, which represents a 2 terminal connector (or n terminal connection) defining the electrical connectivity. The wire's name is provided as second argument, and may be NULL if there is no name to be displayed. In the Nlview schematic, wires will be displayed as polylines.

Wires of type EdbWireTARC play a special role. They are used to represent electrical connections between cavities of the same component, e.g., between the two cavities of a fuse. Albeit not visible in EEvision, they influence the behavior of extractors. Note that arc wires at not possible at splices and eyelets. All cavities that are connected with an arc wire must belong to the same component. Arc wires cannot be part of a multicore.

The NewMulticore function creates a new Multicore object and adds it to the database root if the second argument is NULL, or adds it to a specified parent Multicore forming a tree. The name provided as third argument may be NULL. The EdbMulticoreType adds additional type information: TWISTED, SHIELDED, TWSHIELDED or UNDEF. A Multicore tree represents a nested combination of twisted and shielded wires. The TWSHIELDED is a short-cut for a SHIELDED that includes one TWISTED.



EdbBool  EdbNewAttr(          Edb*,                const char*, const char*);
EdbBool  EdbNewAttr4Component(Edb*, EdbComponent*, const char*, const char*);
EdbBool  EdbNewAttr4Connector(Edb*, EdbConnector*, const char*, const char*);
EdbBool  EdbNewAttr4Cavity(   Edb*, EdbCavity*,    const char*, const char*);
EdbBool  EdbNewAttr4Wire(     Edb*, EdbWire*,      const char*, const char*);
EdbBool  EdbNewAttr4Multicore(Edb*, EdbMulticore*, const char*, const char*);
EdbBool  EdbNewAttr4Module(   Edb*, EdbModule*,    const char*, const char*);

The NewAttr4... functions add attributes to the given object (second argument). Each attribute is a name-value pair. The name (third argument) must not be NULL, and for one object, the names should be unique among all attributes. The string memory required for the names and values is managed by the database and will be cleared when calling EdbDelete. Similar to object attributes, the NewAttr function adds attributes to the database root.

const char* EdbCreateAttr( Edb*, EdbObject*, const char*, const char*);
const char* EdbUpdateAttr( Edb*, EdbObject*, const char*, const char*);
void        EdbUpdateName( Edb*, EdbObject*, const char*);
const char* EdbUpdateDupAttr(Edb*, EdbObject*, const char*, int, const char* []);

The CreateAttr... function works identical to the NewAttr4... functions above, except that the object is specified by the more general base class pointer EdbObject* (so the caller must cast the pointer type). If the given EdbObject* is NULL, then this function creates the attribute at the database root. The return pointer points may be NULL to indicate an error or points to the internally allocated attribute name.

The UpdateAttr... function updates (changes) the value of the named attribute. If the attribute does not exist, then this function creates a new one as CreateAttr does. The given attribute value (forth argument) may be NULL to remove this attribute. The attribute name (third argument) must not be NULL.

The UpdateName... function is unrelated to the Attributes – it updates (changes) the Object name. The given value (third argument) may be NULL to unset the object's name (to remove it).

The UpdateDupAttr... function updates (changes) all values of the named attribute, similar to the EdbUpdateAttr() function, but it addresses all values (of duplicate attributes). This function will delete all existing attribute values (with the given name in the third argument) and add the values given as vector (in the forth and fifth argument). But please note: the EDB provides only limited support for duplicate attributes with UpdateDupAttr() and SearchDupAttr(). The UpdateAttr() and SearchAttr() do not. They always address the first hit only.

Attributes usually act as a general means for carrying arbitrary information as name-value pairs. In EEvision, those general attributes have no direct influence on the generated schematic, but as an exception, there are some reserved attributes, that can optionally be used to control rendering details like colors, etc, if this feature is enabled with the "EdiInit" function (in the Edb VDI API). Those reserved attributes all start with a leading space character in their names. There is a separate documentation page "EEvision Attributes" with details on that.

EdbBool EdbValidateAttr(Edb*, const char*, const char*);

This function checks the given reserved attribute. It actually checks if the given value is supported by EEvision, and if not, returns an error. If the EdbStrictFValidAttr flag is set, then the EdbNewAttr functions above (also EdbCreateAttr, EdbUpdateAttr and EdbUpdateDupAttr) will implicitly check the reserved attribute values by calling EdbValidateAttr() before adding them.

For the " expr" attribute (Boolean expressions at CONFIG modules) there are two specials: (a) this function returns a list of all variable names used in the expression (if there is no error), and (b) if this function is called with NULL value, then is validates all CONFIG module's Boolean expressions and returns a list of all variable names used in all expression (if there is no error). Those variable names are prefixed with the type, that is "b:" for variables evaluated as boolean values and "i:" for variables evaluated as integer values.

Setting StrictMode flags

void                EdbSetStrictMode(Edb*, enum EdbStrictFlags);
enum EdbStrictFlags EdbGetStrictMode(Edb*);

The EdbStrictFlags is an or-combination of individual EDB-global flags that can be set or cleared to control the behavioral of the EDB Creator API. The supported flags are EdbStrictFPedanticSE, EdbStrictFIgnoreDupl, EdbStrictFRestoreAttr, EdbStrictFValidAttr.

Adding or Updating Affinity

EdbBool  EdbUpdateConnAffinity(Edb*, EdbConnector*, unsigned short grp);
EdbBool  EdbUpdateCavAffinity( Edb*, EdbCavity*,    unsigned short grp);

In the so-called 150% data model, there is no way to directly establish partnering between Connectors or Cavities, but the function above can define affinity groups that will be processed after 100%-filtering to create partner relations if EdbFilterFPartner is set. If grp is 0, then the object is removed from that affinity group.

Setting Options for later processing

void EdbSetOptions(Edb*, EdbOption);

The following options enable optional post-filter processing steps, applied after the 100% filtering (that is after the EDB was filtered to a 100% data model. The supported options are: EdbOptionFPWire, EdbOptionFpartner, EdbOptionFPropagate and EdbOptionFMergeConn.

Adding Connectivity

EdbBool  EdbJoin(Edb*, EdbCavity*, EdbWire*);

The Join function adds n-to-m associations between Wires and Cavities representing electrical connectivity. The Nlview software displays the connectivity by routing the Wires to the respective Connector pins. Re-joining the same Wire to the same Cavity is an error, unless the global flag EdbStrictFIgnoreDupl is set (then it is silently ignored). If the global flag EdbStrictFPedanticSE is set, then multi-wire connections at the same cavity at SPICE or EYELET are rejected with an error. The EdbSetStrictMode function sets or clears those global flags.

EdbBool  EdbPartnerConnector(Edb*, EdbConnector*, EdbConnector*);
EdbBool  EdbPartnerCavity(   Edb*, EdbCavity*,    EdbCavity*);

The Partner functions are supported only for Inliner components. They add an 1-to-1 association between two Connectors and between two Cavities, respectively. Nlview uses this information to correctly display the Inliner Connectors and Cavities.

Grouping Wires to a Multicore and connecting the Multicore shield

EdbBool  EdbGroupWire( Edb*, EdbWire*, EdbMulticore*);
EdbBool  EdbShieldWire(Edb*, EdbWire*, EdbMulticore*);

The Group function adds a 1-to-n association between one Multicore object and n Wires (each Wire can be a member of at most one Multicore). This relation does not change the containment tree, that is, the Wires' parent is always the database root. The Shield function does the same as the Group function, but in addition, it identifies this wire to represent the Multicore shield. Each Multicore with a connected shield (SHIELDED or TWSHIELDED) should have a Wire assigned with EdbShieldWire. This shield-wire is used to connect the Multicore shield to one or multiple Cavities.

Object Names

Each object has an optional name, that can be specified as an argument to the functions NewComponent, NewWire, NewConnector, NewMulticore and NewCavity (the name argument may be NULL). This object name will be sent to Nlview to be displayed as a name label at the object in the Schematic (however no label will be displayed, if the object name is set to NULL). The string memory required for the names is managed by the database and will be cleared when calling EdbDelete (there is also an “UpdateName” function to change the object name later).

Object ID by Number

To optionally specify unique id numbers for the objects created by this Creator API, the Edb should first be informed about the id-range by calling EdbInitMaxID before loading. And then, for each object that should get a predefined id number, the EdbSetNextID should be called before creating the corresponding object, that means, directly before calling EdbNewComponent, EdbNewConnector, EdbNewCavity, EdbNewWire, EdbNewMulticore, or EdbNewModule.

void EdbInitMaxID(Edb*, unsigned maxid);
void EdbSetNextID(Edb*, unsigned id);

This id is silently rejected if it is a duplicate or if it is out-of-range [1...maxid). In these cases a unique id is automatically chosen. The "Query API" can be used to access those ID numbers and to look-up objects by those ID numbers.

Type Information

Each object has an optional sub-type information that depends on the object type (Component, Connector, Multicore, etc). That sub-type information is specified by the last argument of the corresponding creation function. The types are defined by the following C enumerators (see also edbtypes.h):

enum EdbComponentType {
     EdbComponentTUNDEF,
     EdbComponentTECU,
     EdbComponentTINLINER,
     EdbComponentTSPLICE,
     EdbComponentTEYELET,
     EdbComponentTSVG,
     EdbComponentTHIER,
     EdbComponentTHBOX
};
enum EdbConnectorType {
     EdbConnectorTUNDEF,
     EdbConnectorTMALE,
     EdbConnectorTFEMALE,
     EdbConnectorTINVISIBLE,
     EdbConnectorTANTI   /* flag */
};
enum EdbCavityType {
     EdbCavityTUNDEF,
     EdbCavityTHALFDOT,
     EdbCavityTSPLICED,
     EdbCavityTIN,   /* flag */
     EdbCavityTOUT   /* flag */
};
enum EdbWireType {
     EdbWireTUNDEF,
     EdbWireTGROUND,
     EdbWireTPOWER,
     EdbWireTLOGICAL,
     EdbWireTBUS,
     EdbWireTHV,
     EdbWireTARC
};
enum EdbMulticoreType {
     EdbMulticoreTUNDEF,
     EdbMulticoreTTWISTED,
     EdbMulticoreTSHIELDED,
     EdbMulticoreTTWSHIELDED
};
enum EdbModuleType {
     EdbModuleTUNDEF,
     EdbModuleTCONFIG,
     EdbModuleTHARNESS,
     EdbModuleTSIGNAL,
     EdbModuleTFUNCTION,
     EdbModuleTALWAYS,
     EdbModuleTBUS
};
enum EdbModuleOption {
     EdbModuleOAUTOCOMPLETE
};
enum EdbOption {
     EdbOptionFPartner,
     EdbOptionFPropagate,
     EdbOptionFPWire
};

The Inliner Component

Usually, Inliner are pretty simple Components with two Connectors that connect 1:1 from left to right (or vice versa). The picture “X2” on the right side displays such a simple Inliner Component.

However, in certain situations, Inliner can be more complex by three reasons: (a) there may be multiple Connector pairs and (b) some of the Connectors may not be available from the current data source and (c) a Connector pair may have missing Cavities. To address (a) and (b), multiple Connector pairs and single Connectors should be grouped to appear on the left or right side. Since Nlview may flip left and right, the EDB must only specify the Connectors on one side versa those on the opposite side. The EdbConnectorType “UNDEF” or “ANTI” should be used to define those two sides. Also the Connector pairs must be defined with the Connector Partner relation (set with EdbPartnerConnector).

To address (c) the Cavity pairs must be defined with the Cavity Partner relation (set with EdbPartnerCavity). Cavity pairs are only possible within Connector pairs and will be displayed by Nlview side by side as C2-E2 and C4-E4 in the picture “X1” on the right side. Unpaired Cavities (those without a Partner relation) will be displayed separately as C6 or E8 in the “X1”.

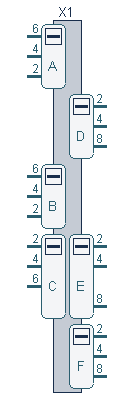

The “X1” also displays the unpaired Connectors A, B, D and F. Also, D, E and F got the “ANTI” EdbConnectorType at creation time, so they get the “opposite side”, while A, B and C get the first side.

Note that connectors at inliner components do not support the connector type “INVISIBLE”.

---

Defining Hierarchy

Design hierarchy is defined by dedicated hierarchy components (EdbComponentType HIER or HBOX). To add objects to a certain hierarchy, one has to call the SetHierarchy(edb, hparent) function, where hparent must refer to a HIER or HBOX component or must be NULL (NULL returns back to top-level of the hierarchy). All following calls to EdbNew…() add the newly created objects to that hierarchy.

void EdbSetHierarchy(Edb*, EdbComponent*);

The HIER Hierarchy

HIER components behave very much like Inliner Components defining pairs of Connectors where the “ANTI” connectors are inside the hierarchy border. The hierarchy border will be displayed as a large rectangle with its contents inside the rectangle. The non-ANTI connectors are located at this border to connect wires from the outside. Hierarchy-crossing wires are not supported; that means that there is usually a wire connecting from the outside and another wire connecting from the inside. The inside wire belongs to the contents of that HIER component.
Nested hierarchy is supported.

The HBOX Hierarchy

The HBOX components act as a “grouping device” and must NOT have any connectors. The hierarchy border will be displayed as a rectangle with its contents inside the rectangle – but without any connectors at the border. Hierarchy-crossing wires are supported here; that means a wire can connect any connector outside and another connector inside the hierarchy (the inside connector belongs to a component inside the HBOX a.k.a. the contents of that HBOX).
Nested hierarchy is supported and a wire can cross multiple HBOX borders. A hierarchy-crossing wire must belong to the inner-most hierarchy that contains (transitively) all connectors the wire is connected to.

A mix of HBOX and HIER hierarchy is supported, but of course, a hierarchy-crossing wire can only cross HBOX borders. All wires within a (nested) multicore have to belong to the same hierarchy level as the multicore itself.

To simplify the creation of HBOX hierarchies, EDB offers the API function

EdbBool EdbFinalizeHierarchy(Edb*);

It can be called after the connectivity has been established, i.e., after all objects have been created, all wires have been connected and grouped into multicores. In that case, HBOX components only have to be taken into account to place components onto the right hierarchy level; for wires and multicores, it is sufficient to set the hierarchy to the innermost HIER component that contains these objects. The HBOX components within the HIER component can be neglected.

EdbFinalizeHierarchy() returns EdbFalse if either a wire has a connection both to a connector inside an HIER component and to a connector outside of it. It also returns EdbFalse if a multicore has wires from different levels of the hierarchy.

---

Defining Modules

A “Module” refers to a set of Edb Objects to define a subset of the database contents. The Modules can, e.g., be used by the built-in extractor "EdbExtractByModules" or by the built-in filter "EdbFilterByModules" to display or filter the contents of a “module”.

EdbModule* EdbNewModuleEx(Edb*, const char*, EdbModuleType);

EdbBool EdbAddObject2Module(    Edb*, EdbModule*, EdbObject*);
EdbBool EdbAddOption2Module(    Edb*, EdbModule*, EdbModuleOption);
EdbBool EdbAddObjectPair2Module(Edb*, EdbModule*, EdbObject*, EdbObject*);
EdbBool EdbAddObjectAttr2Module(Edb*, EdbModule*, EdbObject*, const char*, const char*);

The NewModule function creates a new Module and adds it to the database. The second argument specifies the module's name, that may be NULL if there is no name associated with the module.

The AddObject*2Module functions add references to a module. Three different reference classes are supported: (a) pointer to other Edb objects, (b) pointer-pairs, each to two other Edb objects, and (c) an object-pointer plus a name-value pair like an attribute. Here, EdbObject* is a pointer to a Component, Connector, Cavity, Wire, Multicore or Module. The caller must cast the pointer type. The name-value pairs, added with AddObjectAttr2Module, are not added to the object itself, they are only added to the reference.

The AddOption2Module function adds an option-bit to a module. This is usually something that changes details on the behavior of the given module. The option AUTOCOMPLETE means, that additional references are to be automatically added to a FUNCTION module, after the EDB was filtered to a 100% data model (for more accuracy). The given EdbModule is expected to initially include a set of EdbCavity objects. The AUTOCOMPLETE bit will assume these Cavities as start/end points and traverse the Wires, Splices, Eyelets and Inliners to find paths between all start/end Cavities and will implicitly add those objects to the Module, too.

---

Saving the EDB to a file

To save an existing Edb into a file, use one of the following functions.

EdbBool EdbSave(Edb*, FILE* fp);
EdbBool EdbSaveFile(Edb*, const char* filename);
EdbBool EdbSaveCrypted(Edb*, const char* filename, const char* passwd, unsigned int);

The first function EdbSave() needs a FILE* to an already opened file as argument, the second EdbSaveFile() just the name of the file which will then be opened and closed internally. The third EdbSaveCrypted() additionally needs a secret password for encrypting the file contents and a "unsigned" number to identify the cipher used. Currently supported are 4 (encryption) or 5 (lz4 compression and encryption) or 7 (lz4 compression and encryption with the ChaCha20 cipher).

Restoring the EDB from a file

To restore an Edb from a file, use one of the following functions.

EdbBool EdbRestore(Edb*, FILE* fp);
EdbBool EdbRestoreFile(Edb*, const char* filename);
EdbBool EdbRestoreCrypted(Edb*, const char* filename, const char* passwd);

The first function EdbRestore() needs a FILE* to an already opened file as argument, the second EdbRestoreFile() just the name of the file which will then be opened and closed internally. The third EdbRestoreCrypted() additionally needs a secret password to be able read an encrypted edb file. The given database is expected to be empty. Otherwise the restored data will be added to the Edb.

Note: On Windows platforms please make sure, that any fopen() call has the "b" option set for binary open. When using the dynamic library libedbD.DLL, then you actually must use EdbSaveFile() and EdbRestoreFile() with the filename argument (because passing "FILE*" between DLLs is unsafe).

---

An Example Program

Here is an Example Program that creates a simple EDB and stores it to a file. That file can be restored into an EDB and displayed in Nlview. With pretty default EDI configuration settings, the Extractor "ExtractOne" should create the image on the right (or similar).

With a modified EDI configuration, that additionally (a) displays the Wire color (from Wire's “ color” attribute) and (b) displays labels from Wire's “Diameter” attributes and (c) displays the Component's background color (from Component's “ color” attribute) you should get this picture (or similar).

Building the Containment Tree Structure

set edb [edb new]
$edb delete

The “edb new” command creates an empty database and returns a pointer to it. Technically, this pointer is a new Tcl command (e.g., edb01), which is used for further database related commands (in the following, we use $edb to refer to the current database).

The “delete” command deletes the database and its contents. After that, the $edb pointer to the database is invalid.

$edb new component       ?-name name? ?-ecu|-inliner|-splice|-eyelet|-svg?
$edb new connector $comp ?-name name? ?-anti? ?-male|-female|-half|-invisible?
$edb new cavity    $conn ?-name name? ?-halfdot|-spliced? ?-in? ?-out?

These commands create a new Component, Connector or Cavity object by calling NewComponent(), NewConnector(), or NewCavity() respectively, and return a pointer to the new object in form of an OID. All commands take an optional “-name name” argument which is directly passed to the respective C function call (NULL if omitted).

For the “$edb new component” command, the optional arguments (like “-ecu”, “-inliner”, etc) define the EdbComponentType, which is passed as third argument to the NewComponent() function (UNDEF if omitted).

The “$edb new connector” command takes a previously created Component $comp as second argument for the NewConnector() function call. The options are passed as EdbConnectorType (UNDEF if omitted).

The “$edb new cavity” command takes a previously created Connector $conn as second argument for the NewCavity() function call. The options are passed as EdbCavityType (UNDEF if omitted).

$edb new wire          ?-name name? ?-ground|-power|-logical|-bus|-hv|-arc?
$edb new multicore $mc ?-name name? ?-twisted|-shielded|-twshielded?
$edb new multicore 0   ?-name name? ?-twisted|-shielded|-twshielded?

These commands create a new Wire or Multicore object and return its OID. As before, they take an optional “-name name” argument which is directly passed to the respective C function call (NULL if omitted).

The given $mc must be either the OID of a previously created Multicore resulting in a node of the Multicore tree or “0” resulting in a top-level Multicore. The options are passed as EdbMulticoreType (UNDEF if omitted).

$edb new attr 0        name value
$edb new attr $comp    name value
$edb new attr $conn    name value
$edb new attr $cavity  name value
$edb new attr $wire    name value
$edb new attr $mc      name value

These commands add a new attribute (name-value pair) to the given object (or to the database root in case of “0”) by calling the respective NewAttr4... function. Here, the commands pass the given OID as second, and name and value as third and fourth argument.

$edb update attr $obj name ?value?
$edb update name $obj ?name?
$edb update dupattr $obj name ?value ...?

These commands changes attribute's value or object's name, by calling the corresponding Update... function.

$edb validate attr name value

This command validates the given attribute (name-value pair) by calling the ValidateAttr() function. As a special case, when calling for the " attr" attribute: $edb validate attr " expr" value will additionally return a list of variables used in the Boolean expression (expected in the given value string). Those variables are prefixed with the type, that is "b:" for variables evaluated as boolean values and "i:" for variables evaluated as integer values. As another special case, calling $edb validate attr " expr" (without value) will validate all -config module's Boolean expressions and return an accumulated list of all variables used.

Adding or Updating Affinity

$edb update affinity $conn    $grp
$edb update affinity $cavity  $grp

The “$edb update affinity” commands correlate two Inliner Connectors and Cavities, respectively, by calling the corresponding EdbUpdate function.

Setting Options for later processing

set edb [edb new ?-pwire? ?-partner? ?-propagate? ?--mergeconn?]

This creates a new Edb with some options set, by calling the EdbOptions function.

Adding Connectivity

$edb join $cavity $wire

This command connects the given Cavity and Wire by calling the EdbJoin function.

$edb partner $conn    $conn
$edb partner $cavity  $cavity

Likewise, the “$edb partner” commands correlate two Inliner Connectors and Cavities, respectively, by calling the corresponding EdbPartner function.

Grouping Wires to a Multicore and connecting the Multicore shield

$edb group  $wire $multicore
$edb shield $wire $multicore

Both commands add a Wire to a Multicore forming a group of Wires by calling the EdbGroupWire function or the EdbShieldWire function respectively.

Defining Hierarchy

$edb hierarchy $comp
$edb hierarchy 0

This command changes the hierarchy where the following objects will belong to. It simply calls SetHierarchy().

$edb finalizehier

It calls FinalizeHierarchy() to adjust the hierarchy level of wires and multicores w.r.t. HBOX components.

Defining Modules

$edb new module ?-name name? ?-function|-signal|-harness|-config|-always|-dbus?
$edb module add  $module $obj
$edb module addP $module $obj $obj2
$edb module addA $module $obj name value
$edb module addOption $module autocomplete

The “new” command creates a new Module by calling NewModule() and returns a pointer to the new module in form of an OID.

The family of “module add” commands add a reference to the given database object by calling the AddObject2Module() function. The OID returned from the “new” command is expected to be given as argument to the “module add” commands. The “module addP” command adds a reference to a pair of objects by calling the AddObjectPair2Module() function. The “module addA” command adds a reference to an object and a name-value pair by calling the AddObjectAttr2Module() function. The “module addOption” adds an option flag to the module; currently the only supported option is autocomplete. If this option is set, further objects are automatically added to the module after the 100% filtering has happened. See the AddOption2Module() function for more details.

The OID – Object ID

The OIDs are opaque to the API, however, they are necessary in order to connect database objects by passing them as arguments to other commands (similar to pointers). The lifetime of the OIDs coincides with the lifetime of the database. Like pointers, the OIDs are unique and cannot be exchanged with other databases.

To optionally define unique Object ID Numbers, the create Edb command edb new supports the option “-maxid max” and each of the $edb new component, new connector, new cavity, new wire, new multicore and new module support the option “-id n”.

Saving / Restoring the EDB to / from a file

$edb save    ?-crypted $passwd $cipher? $filename
$edb restore ?-crypted $passwd?         $filename

The “edb save” command saves an already existing database to the given file name, “edb restore” restores a saved database from the given file into an existing edb. The edb is expected to be empty. Otherwise the restored data will be added to the edb.

Example Programs

We offer two example programs tapp1.tcl and tapp3.tcl that create small Edb files using the Tcl EDB Creator API. The source code can be accessed by clicking on the links. The content of the resulting Edb files is displayed in the images on the right.
