Specifying the Computation Method

The indoor database is solved using the dominant path model (DPM)

Click the Computation tab.
Under Semi-Deterministic Propagation Models, click Dominant Path Model (DPM).

Note: The dominant path model is fast and can be used for network planning.
Under Computation of signal level along propagation path (valid for all propagation models), select Empirical Losses for Transmission, Reflection, and Diffraction.

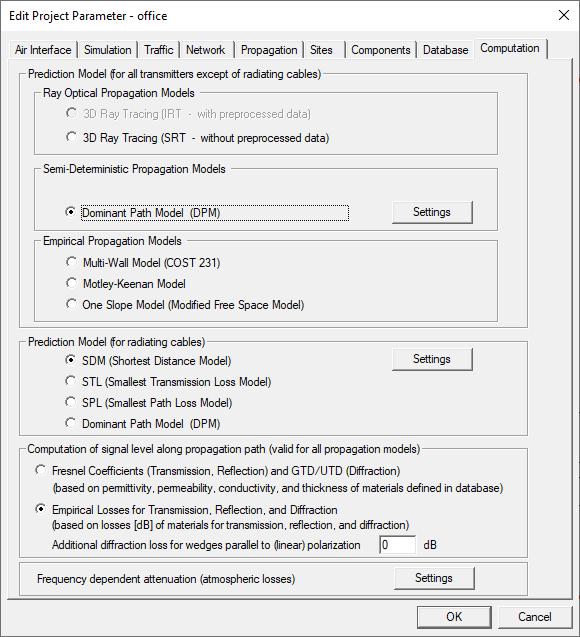

Figure 1. The Edit Project Parameters dialog - Computation tab.
Click OK to close the Edit Project Parameter dialog.
