Creating a New Project

On the File menu, click New Project.
The New Project dialog is displayed.

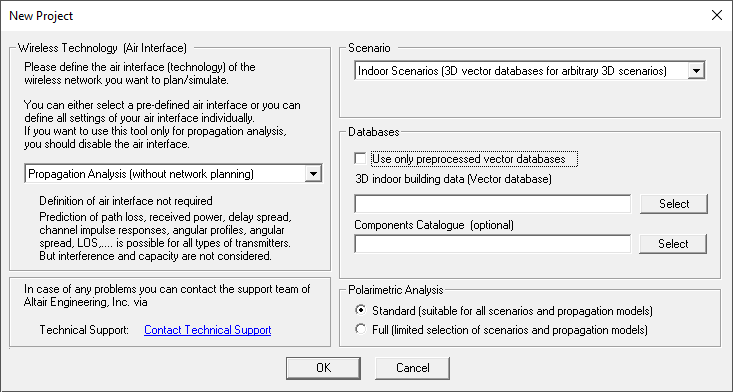

Figure 1. The New Project dialog.
Under Wireless Technology (Air Interface), from the drop-down list, select Network Planning based on description file for air interface and browse to LTE_Band1_BW_05MHz_FDD.wst¹.
Under Scenario, from the drop-down list, select Indoor Scenarios (3D vector databases for arbitrary 3D scenarios).
Under Databases, in the 3D indoor building data (Vector database) field, browse to Office.idb².
Under Polarimetric Analysis, select Standard (suitable for all scenarios and propagation models).
Click OK to close the New Project dialog.
The Define Display Height dialog is displayed.
Figure 2. The Define display Height dialog.
In the Height field, use the default value of 1.5 m.

Note: This value is used only to specify the display height. This value has no impact on the height at which the prediction results are calculated.
Click OK to close the Define Display Height dialog.

¹ Altair\2025.1\help\winprop\examples\GetStarted_models\Project5_Network_Planning\LTE_Band1_BW_05MHz_FDD.wst

² Altair\2025.1\help\winprop\examples\GetStarted_models\Project5_Network_Planning\Office.idb
