Specifying Default Materials for New Objects

Define the default materials for new buildings and vegetation.

Specify the default material for new buildings.
1. Click Buildings and the Material dialog is displayed.
2. Under Select Material, from the drop-down list, select 10: Concrete; thickness: 20 cm.

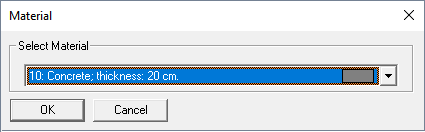

  Figure 1. The Material dialog.
3. Click OK to close the Material dialog.
Specify the default material for new vegetation.
1. Click Vegetation and the Material dialog is displayed.
2. Under Select Material, from the drop-down list, select 73: Default Vegetation.

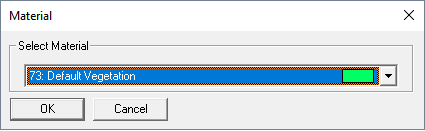

  Figure 2. The Material dialog.
3. Click OK to close the Material dialog.
Click OK to close the Default Values for New Buildings dialog.
The Image configuration dialog is displayed.

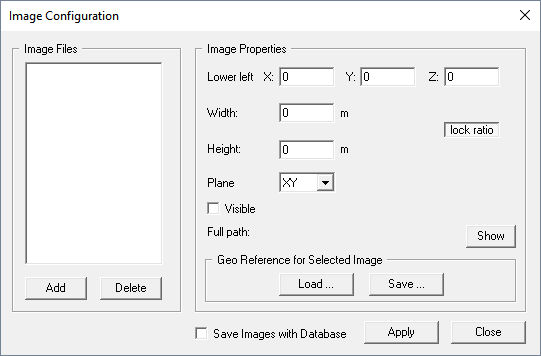

Figure 3. The Image Configuration dialog.

Note: Keep the Image configuration dialog open.
