1. Positioning and objective

The aim of the test “ Working point – Sine wave – Generator – I, Ψ, N” is to characterize the behavior of the machine when operating at the targeted input values I, Ψ, N (Magnitude of current, Control angle, Speed).

These three inputs are enough to impose a precise working point.

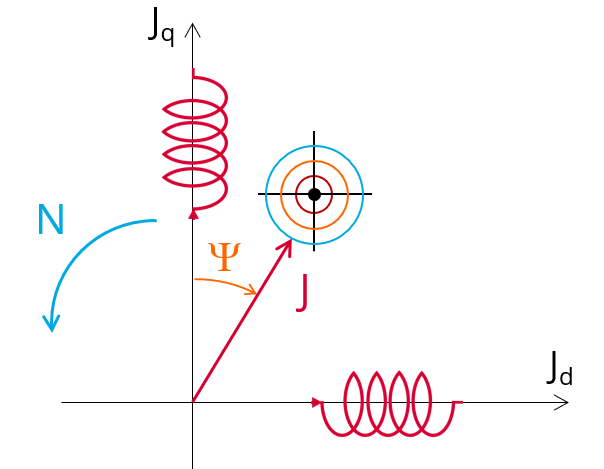

“Working point – Sine wave – Generator – I, Ψ, N” illustration

The results of this test give an overview of the electromagnetic analysis of the machine considering its topology.

The general data of the machine, like machine constants, power balance and magnet behavior are computed and displayed. The generator convention is used to build the model.

The magnetic flux density is also computed in every region of the machine magnetic circuit to evaluate the design.

When both the following conditions are met this test allows to perform electromagnetic computations with coupled thermal analysis.:

• The type of machine is Synchronous Machine with Permanent Magnets with Inner rotor
• One of the two following thermal solving modes is selected: One iteration or iterative solving mode.

Two computation modes are available:

• “Fast computation mode” is perfectly suited for the pre-design step (Hybrid model based on Magneto-Static Finite Element computations and Park transformation theory)
• “Accurate computation mode” is perfectly suited for the final design step (Pure Finite Element modeling based on transient computations)

It also gives the capability to make comparisons between the results obtained from the measurements and those obtained with our solution.

The following table helps to classify the test “Working point – Sine wave – Generator – I, Ψ, N”.

2. User inputs

The four main user input parameters are the supply line current, control angle, speed, and the computation mode. In addition, temperatures of winding and magnets must be set.

3. Main outputs

Test results are illustrated with data, graphs, and tables

3.1 Tables of results

1. Machine performance – Base speed point

   • General data
   • Machine constants
   • Power balance
   • Flux in airgap
   • Flux density in iron
   • Magnet behavior including evaluation of demagnetization rate

2. Power electronics

   • Inverter
   • Working point

3. Ripple mechanical torque

   • Working point

4. Thermal data

   • Table of temperatures

3.2 Curves – in the “Fast computation modes”

1. Ripple mechanical torque versus rotor angular position
2. Flux density in airgap versus rotor angular position
3. Chart of temperature (radial and axial views)

3.3 Curves – in the “Accurate computation modes”

1. Mechanical torque versus rotor angular position
2. Mechanical torque harmonic analysis
3. Flux density in airgap versus rotor angular position
4. Flux density in airgap harmonic analysis
5. Phase voltage versus rotor angular position
6. Phase voltage harmonic analysis
7. Phase current versus rotor angular position
8. Phase current harmonic analysis

3.4 Graphics

1. Isovalues

3.5 Temperatures

1. Chart of temperature (radial and axial views)
2. Thermal data

• Table of temperatures
