Working point - U-f-N - Sinus application

Positioning and objective

This export allows the users to build a model of induction machine in Altair^® Flux^® Skew, which can be used to run steady state AC Magnetic application.

User inputs like line-line voltage, power supply frequency and speed are predefined to allow quick access into Flux^® Skew environment for performing computations. The resulting model is full parameterized.

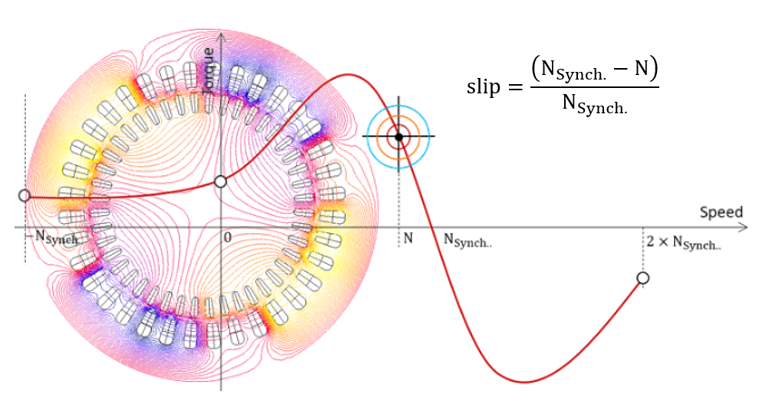

Working point – U-f-N - Illustration

The following section describes all the user inputs to initialize the exported model.

All these parameters can be modified in Flux^® Skew environment if needed.
