Torus
Visualizing a torus
Library
Modelica/Mechanics/MultiBody/Visualizers
Description
Model Torus visualizes a torus. The center of the torus is located atconnector frame_a (visualized by the red coordinate system in the figure below).The left image below shows a torus with ri=0.5 m and ro = 0.2 m.The right images below shows the torus with the additional parametersettings:
opening = 45 degree startAngle = -135 degree stopAngle = 135 degree

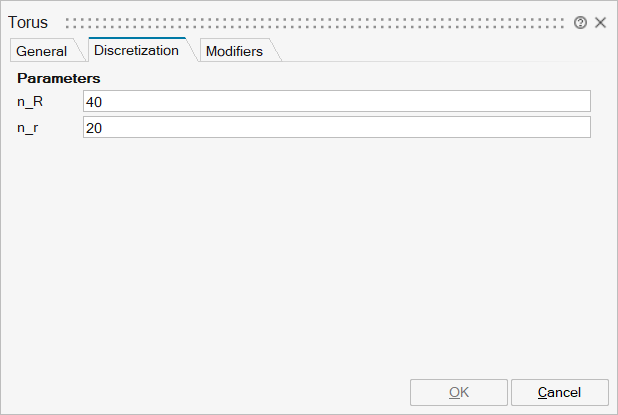

In the advanced menu the discretization of the surface visualization can be defined bythe number of points of the inner radius of the torus (n_ri) and bythe number of points of the outer radius of the torus (n_ro).In case the torus is closed (that is, opening = 0 degree),the actual number of points is one less (that is n_ri-1, n_ro-1), because the first andthe last point of the parametrization coincide in this case.

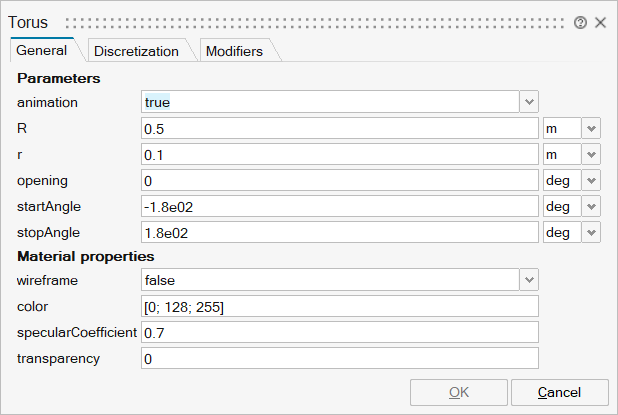

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_animation | animation | = true, if animation shall be enabled | Scalar | true |
mo_ri | ri | Major radius (distance from center of torus to center of tube) | Scalar | |
mo_ro | ro | Minor radius (radius of tube) | Scalar | |
mo_opening | opening | Opening angle of torus | Scalar | |
mo_startAngle | startAngle | Start angle of torus slice | Scalar | |
mo_stopAngle | stopAngle | End angle of torus slice | Scalar | |
mo_wireframe | wireframe | = true: 3D model will be displayed without faces | Scalar | true |
mo_color | color | Color of surface | Vector of size 3 | |
mo_specularCoefficient | specularCoefficient | Reflection of ambient light (= 0: light is completely absorbed) | Scalar | |
mo_transparency | transparency | Transparency of shape: 0 (= opaque) ... 1 (= fully transparent) | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_n_ri | n_ri | Number of points along major radius ri | Scalar | |
mo_n_ro | n_ro | Number of points along minor radius ro | Scalar |

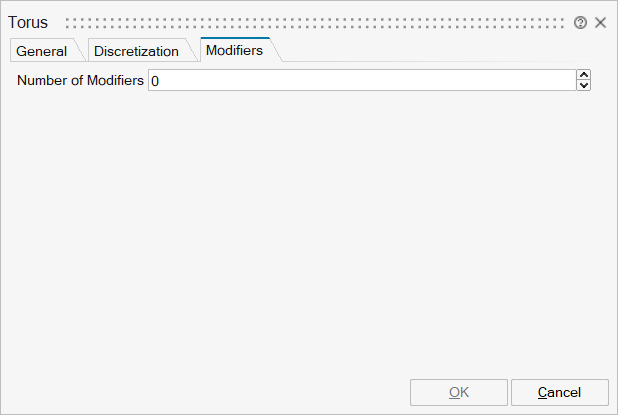

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
frame_a | implicit | Coordinate system in which visualization data is resolved | input | 1 |
