JointSSR

Spherical - spherical - revolute joint aggregation with mass (no constraints, no potential states)

    JointSSR

Library

Modelica/Mechanics/MultiBody/Joints/Assemblies

Description

This component consists of a spherical joint 1 at frame_a, a revolutejoint at frame_b and a spherical joint 2 which is connected via rod 1to the spherical joint 1 and via rod 2 to the revolute joint, see the defaultanimation in the following figure (the axes vectors are not part of thedefault animation):

model Joints.Assemblies.JointSSR

Besides an optional point mass in the middle of rod 1,this joint aggregation has no mass and no inertia,and introduces neither constraints nor potential state variables.It should be used in kinematic loops whenever possible sincethe non-linear system of equations introduced by this joint aggregationis solved analytically (i.e., a solution is always computed, if aunique solution exists).

An additional frame_ib is present. It is fixed in rod 2connecting the revolute and the spherical joint at the side of the revolutejoint that is connected to this rod (= rod2.frame_a = revolute.frame_a).

An additional frame_im is present. It is fixed in rod 2connecting the revolute and the spherical joint at the side of sphericaljoint 2 that is connected to this rod (= rod2.frame_b).It is always parallel to frame_ib.

The easiest way to define the parameters of this joint is by moving theMultiBody system in a reference configuration where all framesof all components are parallel to each other (alternatively,at least frame_b and frame_ib of the JointSSR jointshould be parallel to each other when defining an instance of thiscomponent).

Parameters

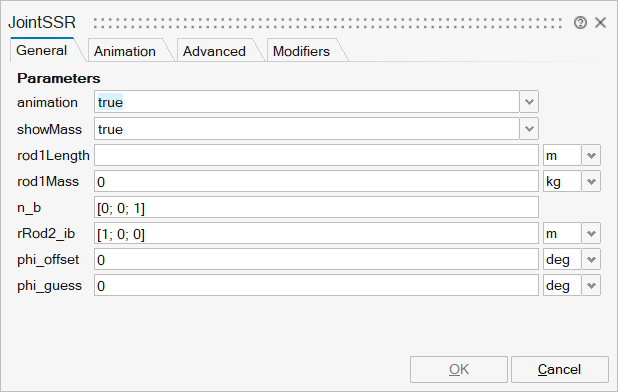

JointSSR_0

NameLabelDescriptionData TypeValid Values

mo_animation

animation

= true, if animation shall be enabled

Scalar

true
false

mo_showMass

showMass

= true, if point mass on rod 1 shall be shown (provided animation = true and rod1Mass > 0)

Scalar

true
false

mo_rod1Length

rod1Length

Distance between the origins of the two spherical joints

Scalar

mo_rod1Mass

rod1Mass

Mass of rod 1 (= point mass located in middle of rod connecting the two spherical joints)

Scalar

mo_n_b

n_b

Axis of revolute joint fixed and resolved in frame_b

Vector of size 3

mo_rRod2_ib

rRod2_ib

Vector from origin of frame_ib to spherical joint in the middle, resolved in frame_ib

Vector of size 3

mo_phi_offset

phi_offset

Relative angle offset of revolute joint (angle = phi(t) + from_deg(phi_offset))

Scalar

mo_phi_guess

phi_guess

Select the configuration such that at initial time |phi(t0) - from_deg(phi_guess)| is minimal

Scalar

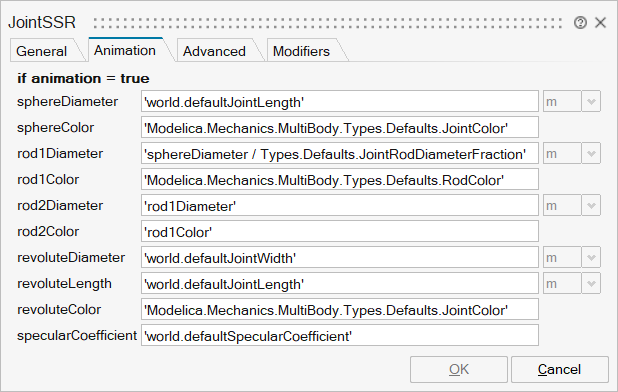

JointSSR_1

NameLabelDescriptionData TypeValid Values

mo_sphereDiameter

sphereDiameter

Diameter of the spheres representing the two spherical joints

Scalar

mo_sphereColor

sphereColor

Color of the spheres representing the two spherical joints

Vector of size 3

mo_rod1Diameter

rod1Diameter

Diameter of rod 1 connecting the two spherical joints

Scalar

mo_rod1Color

rod1Color

Color of rod 1 connecting the two spherical joint

Vector of size 3

mo_rod2Diameter

rod2Diameter

Diameter of rod 2 connecting the revolute joint and spherical joint 2

Scalar

mo_rod2Color

rod2Color

Color of rod 2 connecting the revolute joint and spherical joint 2

Vector of size 3

mo_revoluteDiameter

revoluteDiameter

Diameter of cylinder representing the revolute joint

Scalar

mo_revoluteLength

revoluteLength

Length of cylinder representing the revolute joint

Scalar

mo_revoluteColor

revoluteColor

Color of cylinder representing the revolute joint

Vector of size 3

mo_specularCoefficient

specularCoefficient

Reflection of ambient light (= 0: light is completely absorbed)

Scalar

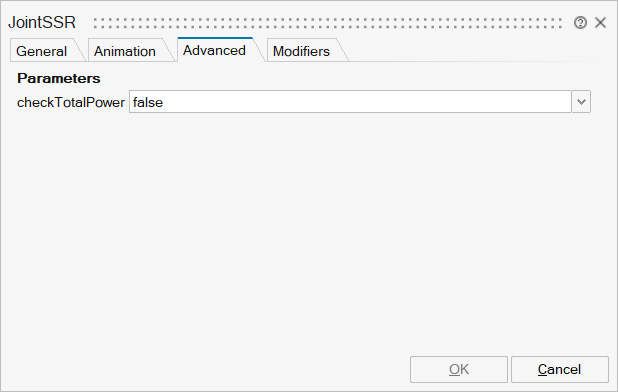

JointSSR_2

NameLabelDescriptionData TypeValid Values

mo_checkTotalPower

checkTotalPower

= true, if total power flowing into this component shall be determined (must be zero)

Scalar

true
false

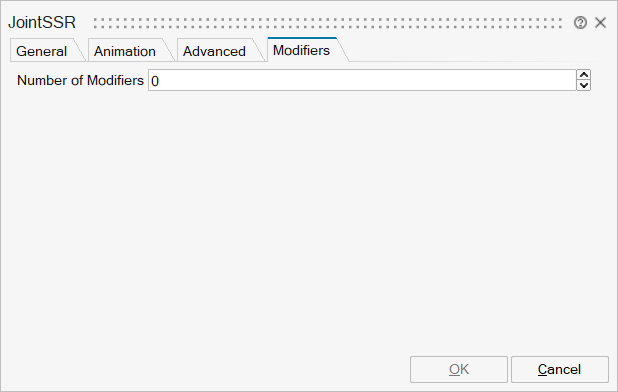

JointSSR_3

NameLabelDescriptionData TypeValid Values

mo__nmodifiers

Number of Modifiers

Specifies the number of modifiers

Number

mo__modifiers

Modifiers

Add new modifier

Structure

mo__modifiers/varname

Variable name

Cell of strings

'aux'
'f_rod'
'totalPower'

mo__modifiers/attribute

Attribute

Cell of strings

'start'
'fixed'

mo__modifiers/value

Value

Ports

NameTypeDescriptionIO TypeNumber

frame_a

implicit

Coordinate system fixed to the component with one cut-force and cut-torque

input

1

frame_b

implicit

Coordinate system fixed to the component with one cut-force and cut-torque

output

1

frame_ib

implicit

Coordinate system at origin of frame_b fixed at connecting rod of spherical and revolute joint

output

2

frame_im

implicit

Coordinate system at origin of spherical joint in the middle fixed at connecting rod of spherical and revolute joint

output

3

axis

implicit

1-dim. rotational flange that drives the revolute joint

input

2

bearing

implicit

1-dim. rotational flange of the drive bearing of the revolute joint

output

4
