IntersectivePWM
Intersective PWM
Library
Modelica/Electrical/PowerConverters/DCAC/Control
Description
The intersective PWM transforms the input space phasor u to the three-phase voltages,and compares them with the reference signals.As long as the phase voltage is greater than the corresponding reference signal, the corresponding fire signal is true.The switching pattern of the negative fire signal is just the inverse of the positive fire signal.
The user can choose from 4 different reference signals:
- Sawtooth1: sawtooth signal, same phase in all three phases
- Sawtooth3: sawtooth signal, phase shift between the three phases = period/3
- Triangle1: triangle signal, same phase in all three phases
- Triangle3: triangle signal, phase shift between the three phases = period/3

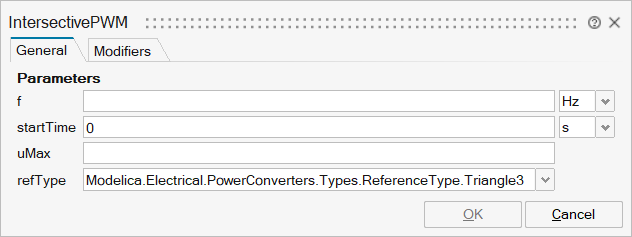

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_f | f | Switching frequency | Scalar | |
mo_startTime | startTime | Start time of PWM | Scalar | |
mo_uMax | uMax | Maximum amplitude of signal | Scalar | |
mo_refType | refType | Type of reference signal | Structure | |
mo_refType/choice1 | Modelica.Electrical.PowerConverters.Types.ReferenceType.Sawtooth1 | Number | 0 | |
mo_refType/choice2 | Modelica.Electrical.PowerConverters.Types.ReferenceType.Sawtooth3 | Number | 0 | |
mo_refType/choice3 | Modelica.Electrical.PowerConverters.Types.ReferenceType.Triangle1 | Number | 0 | |
mo_refType/choice4 | Modelica.Electrical.PowerConverters.Types.ReferenceType.Triangle3 | Number | 0 |

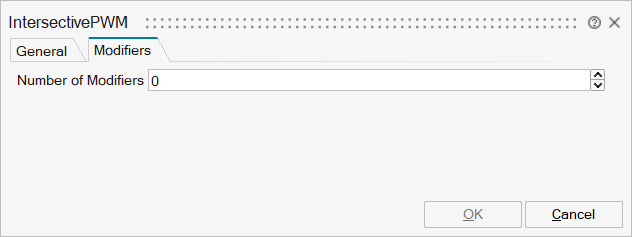

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Reference space phasor | input | 1 |
fire_p | implicit | Positive fire signal | output | 1 |
fire_n | implicit | Negative fire signal | output | 2 |
