HalfControlledBridge2Pulse
Two pulse Graetz half controlled rectifier bridge
Library
Modelica/Electrical/PowerConverters/ACDC
Description
General information about AC/DC converters can be found at theAC/DC converter concept
This is a two pulse Graetz half controlled rectifier bridge. The firing signal fire_p is connectedwith thyristor thyristor_p1.The firing signal fire_n is connectedwith thyristor thyristor_p2.The circuit topology is the same as inExamples.ACDC.RectifierCenterTap2Pulse.

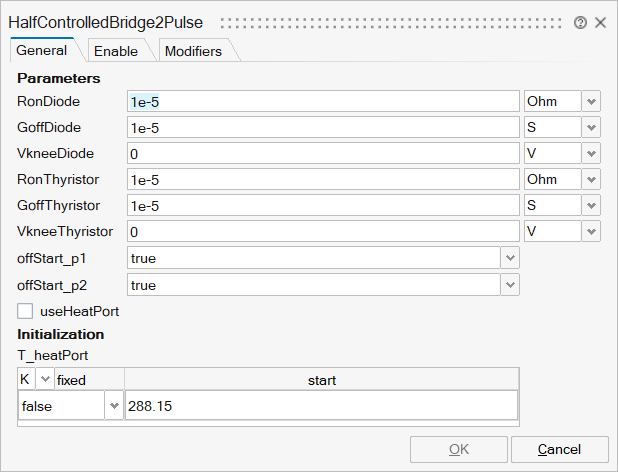

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_RonDiode | RonDiode | Closed diode resistance | Scalar | |
mo_GoffDiode | GoffDiode | Opened diode conductance | Scalar | |
mo_VkneeDiode | VkneeDiode | Diode forward threshold voltage | Scalar | |
mo_RonThyristor | RonThyristor | Closed thyristor resistance | Scalar | |
mo_GoffThyristor | GoffThyristor | Opened thyristor conductance | Scalar | |
mo_VkneeThyristor | VkneeThyristor | Thyristor forward threshold voltage | Scalar | |
mo_offStart_p1 | offStart_p1 | Boolean start value of variable thyristor_p1.off | Scalar | true |
mo_offStart_p2 | offStart_p2 | Boolean start value of variable thyristor_p2.off | Scalar | true |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar | |
mo_m | m | Number of phases | Scalar | |
mo_T_heatPort | T_heatPort | T_heatPort | Structure | |
mo_T_heatPort/fixed | fixed | Cell of scalars | true | |
mo_T_heatPort/start | start | Cell of scalars |

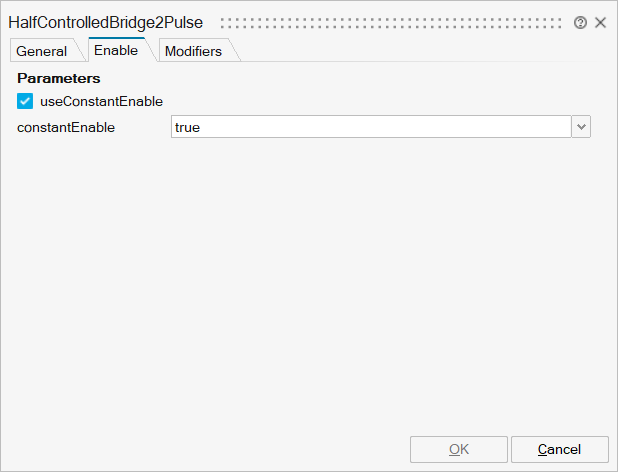

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useConstantEnable | useConstantEnable | true = disabled boolean input, use constantEnable | Number | 0 |
mo_constantEnable | constantEnable | Constant enabling of firing signals | Scalar | true |

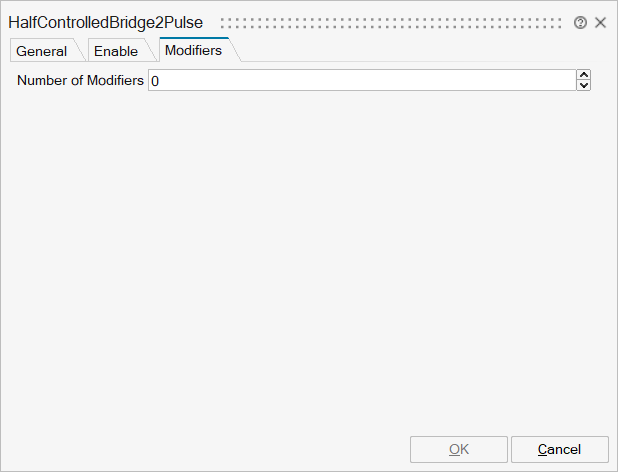

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'vAC' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
ac_p | implicit | Positive AC input | input | 1 |
ac_n | implicit | Negative AC input | output | 1 |
dc_p | implicit | Positive DC output | input | 2 |
dc_n | implicit | Negative DC output | output | 2 |
fire_p | implicit | Firing signal of positive potential transistor | input | 3 |
fire_n | implicit | Firing signal of negative potential transistor | input | 4 |
Port 7 | implicit | Conditional heat port | input | mo_useHeatPort |
Port 8 | implicit | Enables fire and notFire | input | 1-mo_useConstantEnable |
