Signal2mPulse

Generic control of 2*m pulse rectifiers

Signal2mPulse

Library

Modelica/Electrical/PowerConverters/ACDC/Control

General information about controllers is summarized inControl.

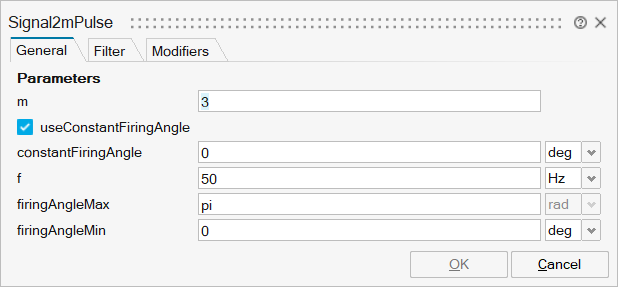

Signal2mPulse_0

Name	Label	Description	Data Type	Valid Values
mo_m	m	Number of phases	Scalar
mo_useConstantFiringAngle	useConstantFiringAngle	Use constant firing angle instead of signal input	Number	0 1
mo_constantFiringAngle	constantFiringAngle	Firing angle	Scalar
mo_f	f	Frequency	Scalar
mo_firingAngleMax	firingAngleMax	Maximum firing angle	Scalar

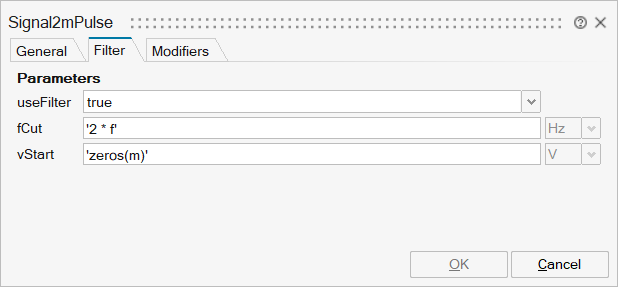

Signal2mPulse_1

Name	Label	Description	Data Type	Valid Values
mo_useFilter	useFilter	Enable use of filter	Scalar	true false
mo_fCut	fCut	Cut off frequency of filter	Scalar
mo_vStart	vStart	Start voltage of filter output	Vector

Name

Label

Description

Data Type

Valid Values

mo_useFilter

useFilter

Enable use of filter

Scalar

true
false

mo_fCut

fCut

Cut off frequency of filter

Scalar

mo_vStart

vStart

Start voltage of filter output

Vector

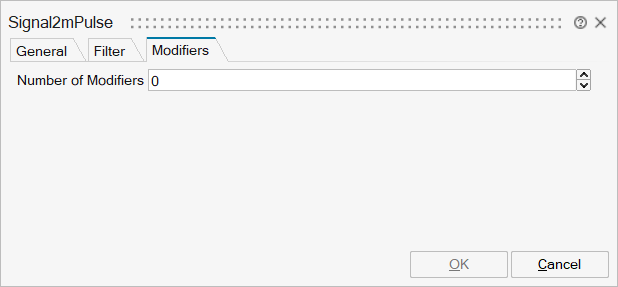

Signal2mPulse_2

Name	Label	Description	Data Type	Valid Values
mo__nmodifiers	Number of Modifiers	Specifies the number of modifiers	Number
mo__modifiers	Modifiers	Add new modifier	Structure
mo__modifiers/varname	Variable name		Cell of strings
mo__modifiers/attribute	Attribute		Cell of strings	'start' 'fixed'
mo__modifiers/value	Value

Name	Type	Description	IO Type	Number
fire_p	implicit		output	1
fire_n	implicit		output	2
v	implicit	Voltages	input	1
Port 4	implicit	Firing angle (rad)	input	1-mo_useConstantFiringAngle
