Step
Digital Step Source
Library
Modelica/Electrical/Digital/Sources
Description
The step source output signal steps from the value before to the value afterat the time stepTime.
To specify the logic value parameters, the integer code has to be used.
Code Table
| Logic value | Integer code | Meaning |
| 'U' | 1 | Uninitialized |
| 'X' | 2 | Forcing Unknown |
| '0' | 3 | Forcing 0 |
| '1' | 4 | Forcing 1 |
| 'Z' | 5 | High Impedance |
| 'W' | 6 | Weak Unknown |
| 'L' | 7 | Weak 0 |
| 'H' | 8 | Weak 1 |
| '-' | 9 | Do not care |
If the logic values are imported by
import L = Digital.Interfaces.Logic;
they can be used to specify the parameter, e.g., L.'0' for forcing 0.

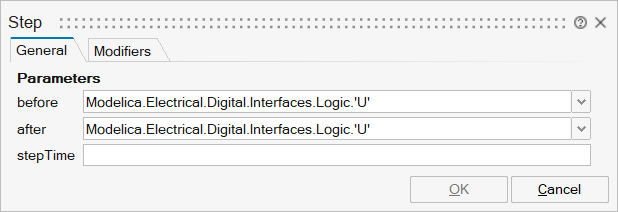

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_before | before | Logic value before step | Structure | |
mo_before/choice1 | Modelica.Electrical.Digital.Interfaces.Logic.'U' | Number | 0 | |
mo_before/choice2 | Modelica.Electrical.Digital.Interfaces.Logic.'X' | Number | 0 | |
mo_before/choice3 | Modelica.Electrical.Digital.Interfaces.Logic.'0' | Number | 0 | |
mo_before/choice4 | Modelica.Electrical.Digital.Interfaces.Logic.'1' | Number | 0 | |
mo_before/choice5 | Modelica.Electrical.Digital.Interfaces.Logic.'Z' | Number | 0 | |
mo_before/choice6 | Modelica.Electrical.Digital.Interfaces.Logic.'W' | Number | 0 | |
mo_before/choice7 | Modelica.Electrical.Digital.Interfaces.Logic.'L' | Number | 0 | |
mo_before/choice8 | Modelica.Electrical.Digital.Interfaces.Logic.'H' | Number | 0 | |
mo_before/choice9 | Modelica.Electrical.Digital.Interfaces.Logic.'-' | Number | 0 | |
mo_after | after | Logic value after step | Structure | |
mo_after/choice1 | Modelica.Electrical.Digital.Interfaces.Logic.'U' | Number | 0 | |
mo_after/choice2 | Modelica.Electrical.Digital.Interfaces.Logic.'X' | Number | 0 | |
mo_after/choice3 | Modelica.Electrical.Digital.Interfaces.Logic.'0' | Number | 0 | |
mo_after/choice4 | Modelica.Electrical.Digital.Interfaces.Logic.'1' | Number | 0 | |
mo_after/choice5 | Modelica.Electrical.Digital.Interfaces.Logic.'Z' | Number | 0 | |
mo_after/choice6 | Modelica.Electrical.Digital.Interfaces.Logic.'W' | Number | 0 | |
mo_after/choice7 | Modelica.Electrical.Digital.Interfaces.Logic.'L' | Number | 0 | |
mo_after/choice8 | Modelica.Electrical.Digital.Interfaces.Logic.'H' | Number | 0 | |
mo_after/choice9 | Modelica.Electrical.Digital.Interfaces.Logic.'-' | Number | 0 | |
mo_stepTime | stepTime | Step time | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

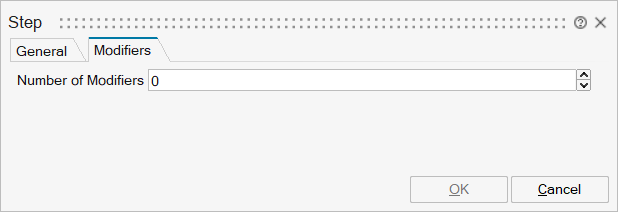

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | output | 1 |
