InertialDelay
Inertial delay with initial parameter
Library
Modelica/Electrical/Digital/Delay
Description
Provides the input as output delayed by delayTime if the input holds its value for a longer time than delayTime.If time is less than delayTime the initial value y0 holds.
Parameters

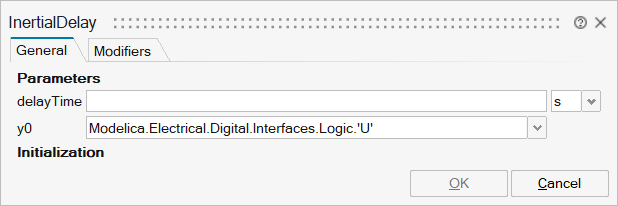

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_delayTime | delayTime | Minimum time to hold value | Scalar | |
mo_y0 | y0 | Initial value of output y | Structure | |
mo_y0/choice1 | U Uninitialized | Number | 0 | |
mo_y0/choice2 | X Forcing Unknown | Number | 0 | |
mo_y0/choice3 | 0 Forcing 0 | Number | 0 | |
mo_y0/choice4 | 1 Forcing 1 | Number | 0 | |
mo_y0/choice5 | Z High Impedance | Number | 0 | |
mo_y0/choice6 | W Weak Unknown | Number | 0 | |
mo_y0/choice7 | L Weak 0 | Number | 0 | |
mo_y0/choice8 | H Weak 1 | Number | 0 | |
mo_y0/choice9 | - Do not care | Number | 0 | |
mo_y_auxiliary | y_auxiliary | y_auxiliary | Structure | |
mo_y_auxiliary/fixed | fixed | Cell of scalars | true | |
mo_y_auxiliary/start | start | FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''U''') | ||
mo_x_old | x_old | x_old | Structure | |
mo_x_old/fixed | fixed | Cell of scalars | true | |
mo_x_old/start | start | FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''U''') | ||
mo_t_next | t_next | t_next | Structure | |
mo_t_next/fixed | fixed | Cell of scalars | true | |
mo_t_next/start | start | Cell of scalars |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |

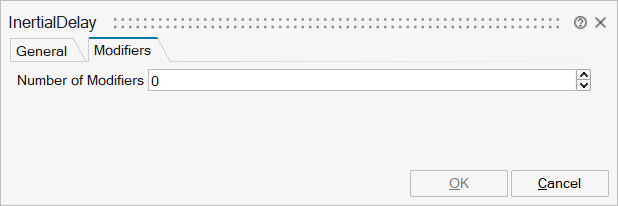

mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
x | implicit | Connector of Digital input signal | input | 1 |
y | implicit | Connector of Digital output signal | output | 1 |
