TriggeredTrapezoid
Triggered trapezoid generator
Library
Modelica/Blocks/Logical
Description
The block TriggeredTrapezoid has a Boolean input and a realoutput signal and requires the parameters amplitude,rising, falling and offset. Theoutput signal y represents a trapezoidal signal dependent on theinput signal u.
The behaviour is as follows: Assume the initial input to be false. In thiscase, the output will be offset. After a rising edge (i.e., the inputchanges from false to true), the output is rising during rising to thesum of offset and amplitude. In contrast, after a fallingedge (i.e., the input changes from true to false), the output is fallingduring falling to a value of offset.
Note, that the case of edges before expiration of rising or falling ishandled properly.
Parameters

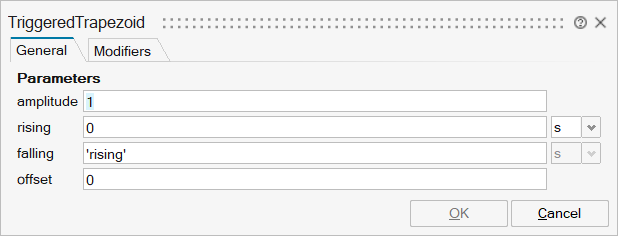

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_amplitude | amplitude | Amplitude of trapezoid | Scalar | |
mo_rising | rising | Rising duration of trapezoid | Scalar | |
mo_falling | falling | Falling duration of trapezoid | Scalar | |
mo_offset | offset | Offset of output signal | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'endValue' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Connector of Boolean input signal | input | 1 |
y | implicit | Connector of Real output signal | output | 1 |
