Waterfall Chart Settings (Legacy)
Waterfall Charts are a form of cumulative Bar Chart, showing the cumulative effect across a series of changes.
They can aid in understanding how performance changes contribute to a final position.
Color can be used to represent either a Stage in the process, or the change in performance for that stage.
The waterfall chart settings pane is displayed after clicking the Options
button.

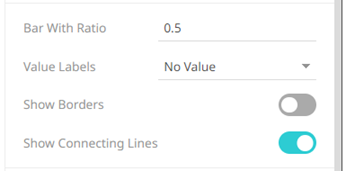

| Setting | Description |
| Bar Width Ratio (%) | Defines the ratio of the width within the bars. Default is .5. |
| Value Labels | Defines what type of value labels are shown in bars: Bar Value or Cumulative Value. |
| Show Borders | Determines whether borders are drawn around bars. |
| Show Connecting Lines | Determines whether connecting lines are drawn between bars. |

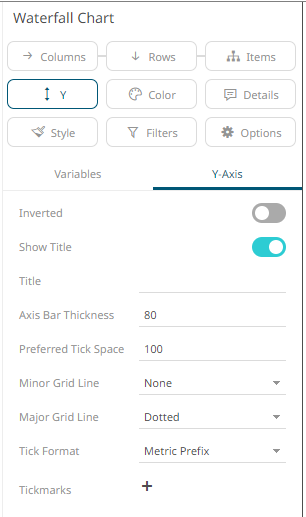

Other visualization-specific properties can be set by clicking on the Y-Axis variable drop area and then selecting the Y-Axis tab:
