Surface Plot Settings
Surface Plots are used to identify trends and outliers within numeric surfaces.
The Surface is made up of a series of points where each point has:
- X Position
- Y Position
- Color (which represents the Z axis).
The Surface Plot can support data sets where the X and Y positions can both be regular and irregular in their distribution.
Additionally, the color scale can be continuous or stepped to show a surface gradient.

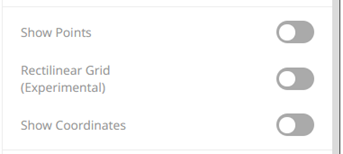

The surface plot settings pane is displayed after clicking the Options
button.
| Setting | Description |
| Show Points | Determines whether surface data points are shown. |
| Rectilinear Grid | Determines whether distinct X and Y values are changed into a rectilinear grid where missing values are filled in with a default of zero (or the ground level). |
| Show Coordinates | Determines whether the graph coordinates (i.e., X-Y plots, or Date/Time-Y plots) on mouse over are displayed in the visualization. |

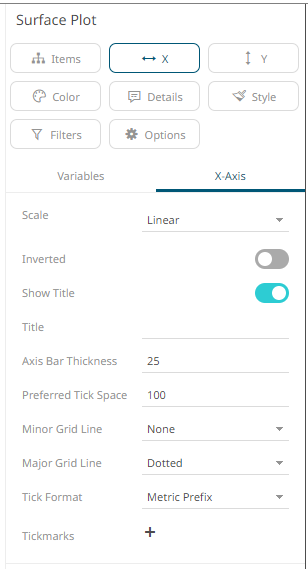

Other visualization-specific properties can be set by clicking on the X-Axis variable drop area and then selecting the X-Axis tab:

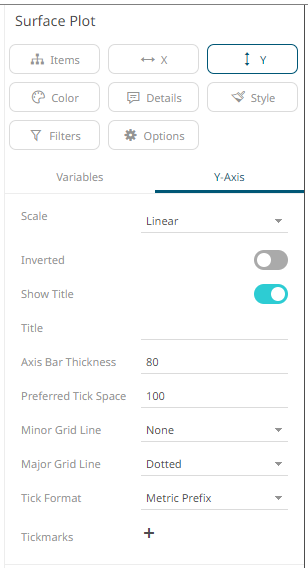

Or also, by clicking on the Y-Axis variable drop area and then selecting the Y-Axis tab:
