Ribbon: Post

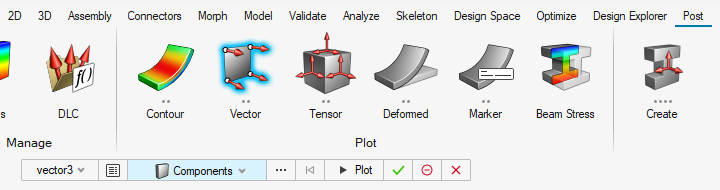

Tool: Vector Plot
Use the Vector tool to draw arrows such that the direction in which the arrow points is the direction of the vector and the length of the arrow is its magnitude.
Visit help
