Ribbon: 2D

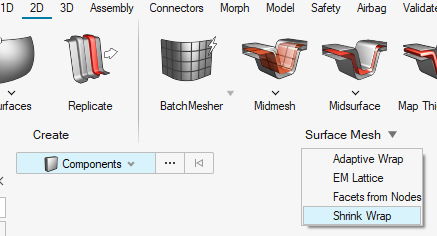

Tool: 2D Mesh Drop Down Menu
Shrink Wrap meshing is a method to create a simplified mesh of a complex model when high-precision models are not necessary, as is the case for powertrain components during crash analysis. Onc the menu item is selected, a EE dialog opens.
Visit help
