Ribbon: Home
Tool: Mirror (Move drop down)

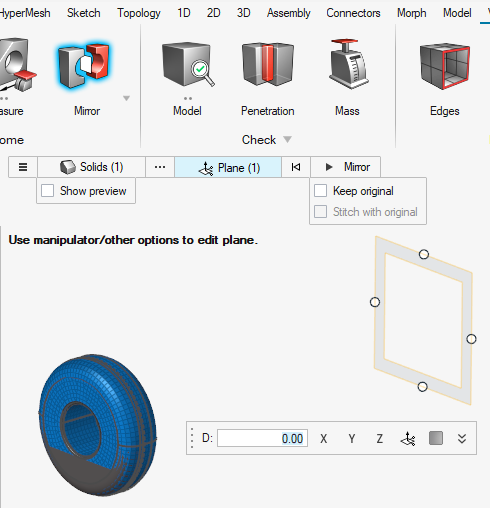

Use the Mirror tool to mirror/reflect selected entities across a symmetry plane.
