Ribbon: Analyze
Tool: Loads->Forces

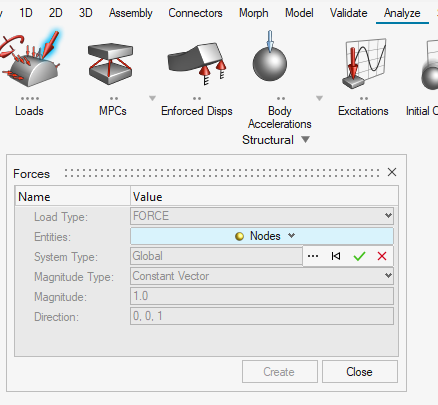

Create concentrated forces by applying a load, representing forces, to a node or set.Use the Entity Editor to update/modify the Forces.
Visit help
