Ribbon: Validate
Tool: Faces

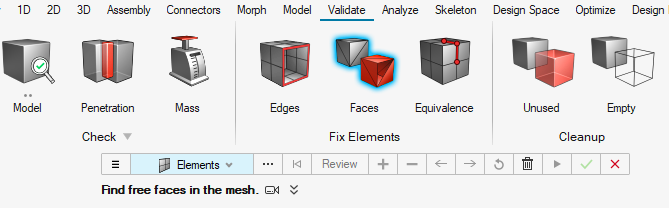

Use the Faces tool to find free faces in a group of 3D elements and create shell elements from them.
