ToSpacePhasor
Conversion of polyphase instantaneous values to space phasors
Library
Modelica/Electrical/Machines/SpacePhasors/Blocks
Description

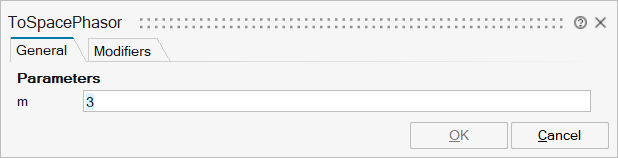

Transformation of polyphase values (of voltages or currents) to space phasor and zero sequence value.Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_nin | nin | Number of inputs | Scalar | |
mo_nout | nout | Number of outputs | Scalar | |
mo_m | m | Number of phases | Scalar | |
mo_phi | phi | Vector | ||
mo_TransformationMatrix | TransformationMatrix | Matrix of size 2xN | ||
mo_InverseTransformation | InverseTransformation | Matrix of size Mx2 |

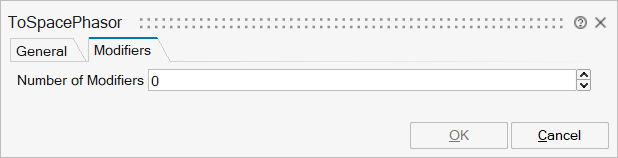

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Connector of Real input signals | input | 1 |
y | implicit | Connector of Real output signals | output | 1 |
zero | implicit | Zero sequence component | output | 2 |
