Text data

Loads and Constraints > right click > Text data

Introduction

During model setup, if user wants to add unsupported cards, those cards can be added as text using this option.

While import Abaqus or OptiStruct deck, cards not read by SimLab are placed in the respective sections -

  • For Abaqus: Model Data, Step Data and Material Data.
  • For OptiStruct: Bulk Data, Subcase Data, Param Data and Input Output data.

So that Abaqus or OptiStruct deck imported into SimLab and exported back will not have any data loss. The Text data is supported for Abaqus, OptiStruct, Permas, ADVENTURECluster, LS-Dyna and Ansys interfaces.

The following data sections can be entered as text,

  • Abaqus
    • Model data
    • Step data
  • OptiStruct
    • Bulk data
    • Subcase Section data
    • Input Output section data
    • Param data
  • Permas
    • User control interface(*.uci)
      • Global
      • Input
      • Execution
      • Export
    • Data input(*.dat)
      • Structure
      • Constraints
      • System
      • Loading
      • Results
      • Situation
  • ADVENTURECluster
  • LS-Dyna
  • Ansys
    • Preparation data
    • Solution data

Description

  1. Right click on Loads and Constraints in Loads and Constraints browser to open Text data editor.

  2. The text data for Load cases can be done by right clicking on the respective load cases.

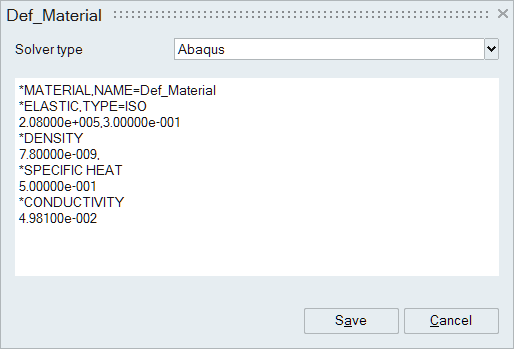

  3. For material text data right click material on material browser and use import material option. Using this option Abaqus deck can be imported and SimLab will import the material data in the file as text data.

  4. The import and export buttons in the Text data dialog can be used to import data from external file.
