Import Associated Mesh File
Description

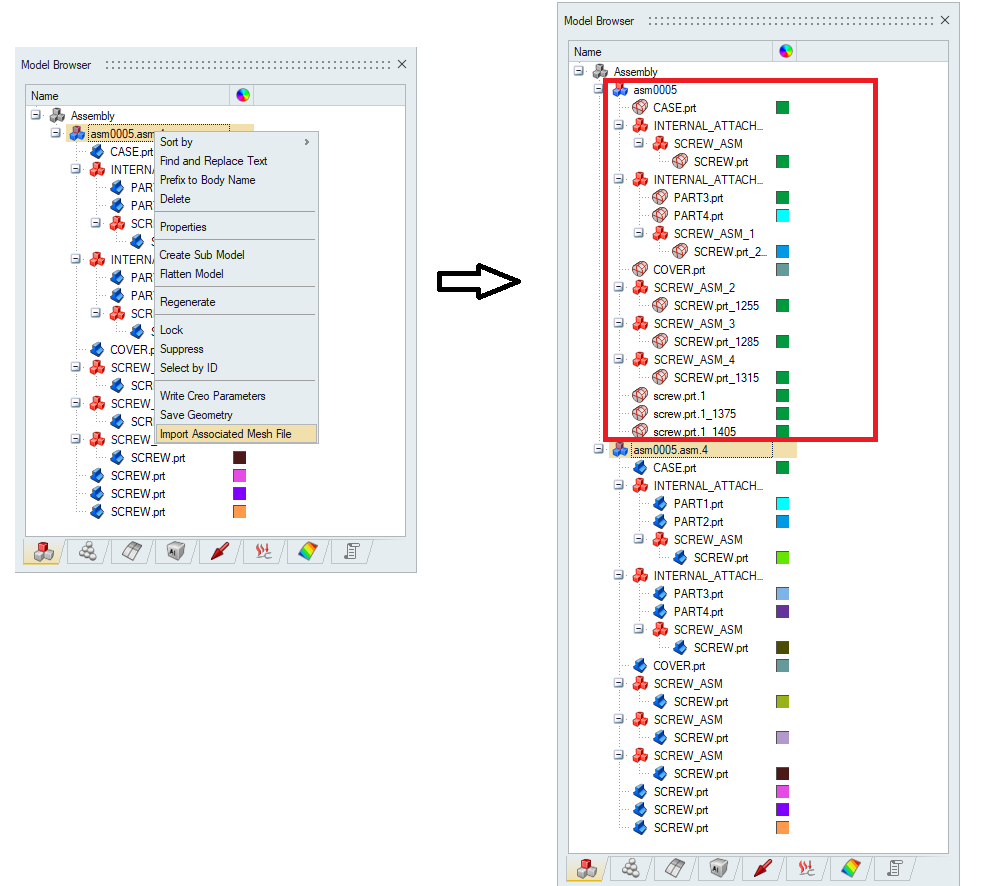

This option is used to import the associated mesh file for CAD assembly. Sub assemblies / parts can be modelled by different members of a team. The databases from each member can be taken into the main assembly using this tool. The parts will get positioned based on the main assembly transformation.
GDA / SLB files can be imported using this option, combination of files are not supported. The files should be placed in the CAD file location. In the case of GDA files, file associated with a sub assembly should have an extension of '.asm.gda' and a part should have an extension of '.prt.gda'.
