Secondary Result Panel

Introduction

Create Sub Results Panel

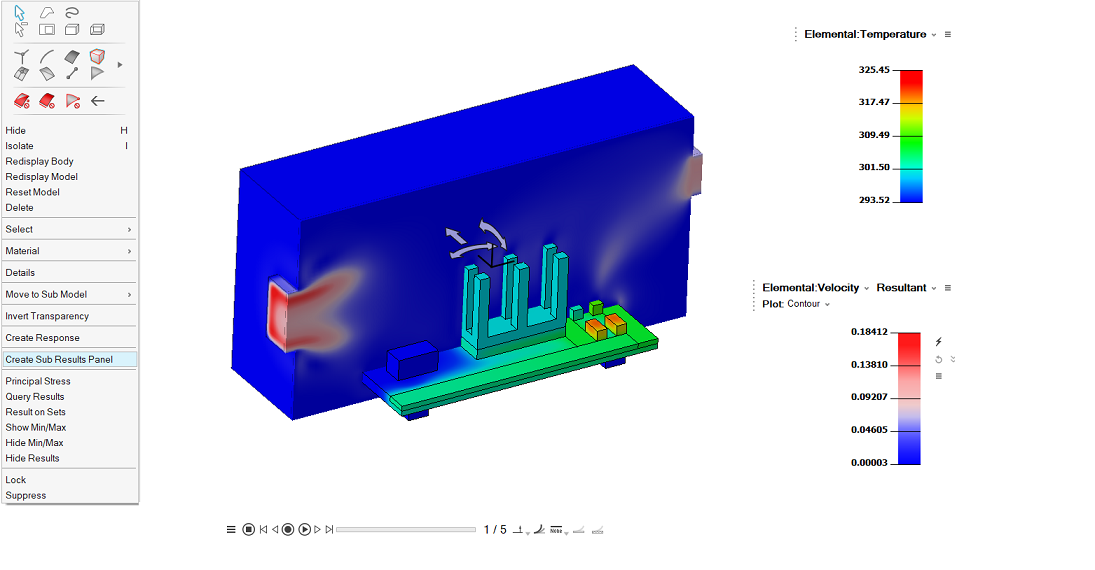

To create the sub results panel, select body in the UI and right-click | Create sub results panel. The new results panel displays for the selected bodies. Any changes in the sub results panel reflect only to the selected panel bodies.

Move to Sub Results Panel

To add some more bodies to the sub results panel, select body and UI | Right-click | Move to Sub Results panel.

Remove from Sub Results Panel

To remove bodies from the sub results panel, select body and UI | Right-click | Remove from Sub Results panel.

To delete the sub results panel view, select all the bodies of the sub results panel and UI | Right-click | Remove from Sub Results Panel.

Display

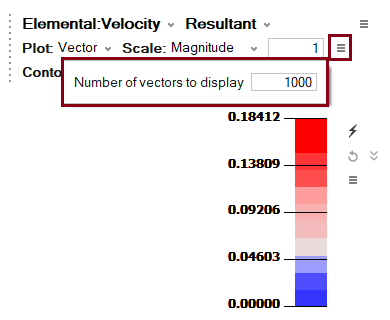

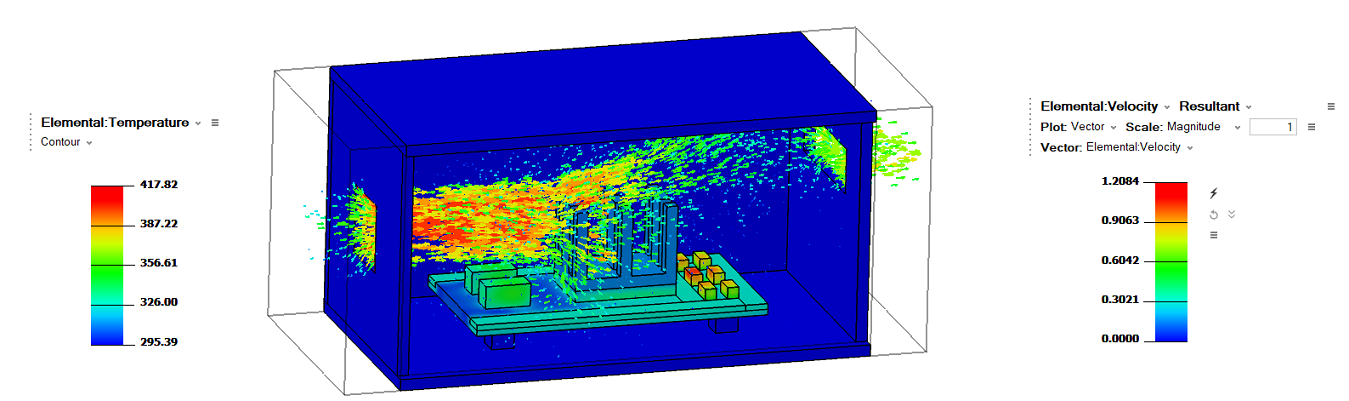

Sub panel view option is used to display both vector and contour. The vector count is adjusted using the "Number of vector to display" option in the panel.

The Vector scaling is based on the selected vector component and vector color is based on the selected results component.

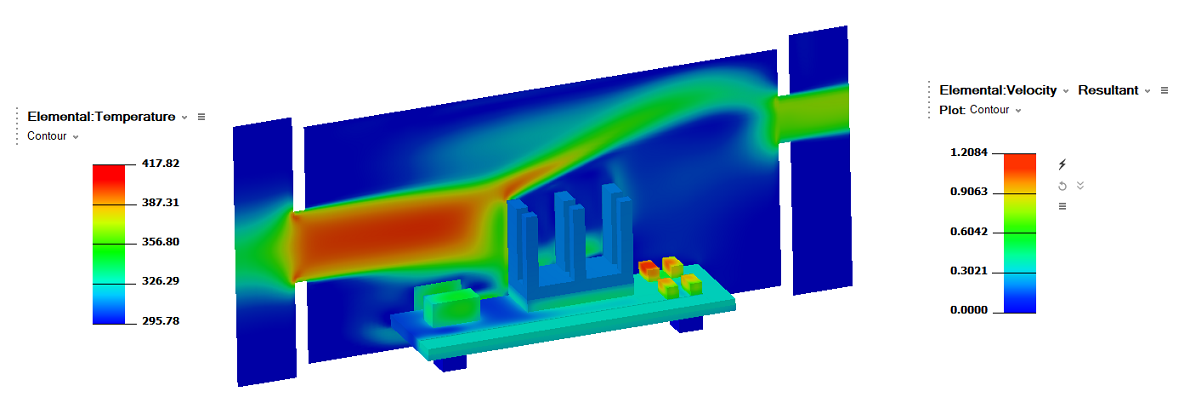

Cut Plane View:

Supported only for H3d Results. Query results and animation are supported for the Sub results panel view. All other results operations work based on the main results panel.
