Right-Click Options

User Interface > Flow Post Results Model > Right Click

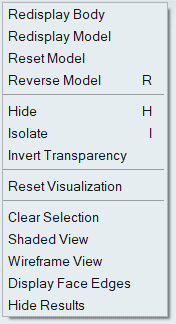

Navigating to the new Post ribbon shows the following right-click options.

Hide: Use this option to hide the selected entities.

Isolate: Use this option to display only the selected entity.

Clear Selection: Supported to select the surfaces, this option clears the selected entities.

Shaded View: Use this option to switch from the wireframe display to the shaded display.

Wireframe View: Use this option to display only the face edges of the model.

Display Face Edges: Use this option to display the face edges of the model.

Hide Results: Use this option to switch back to Geometry visibility by hiding the flow post results display and its right-click options in the user interface.
