Analysis Review Tools: Thread Pretension

Introduction

The review tool for Thread Pretension displays Abaqus / Permas thread pretensions with the corresponding parameters in a tabular form.

Steps

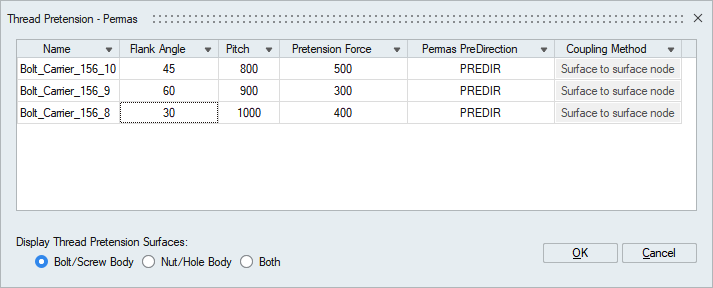

  1. Right click on "Automation Object" in LBC browser, will show review tool for Thread Pretension, if any thread pretensions found.
  2. Selecting the thread pretension name in the table will highlight the entities of the thread pretension in GUI.
  3. We can edit the thread pretension parameters in this table.

Solution Option:

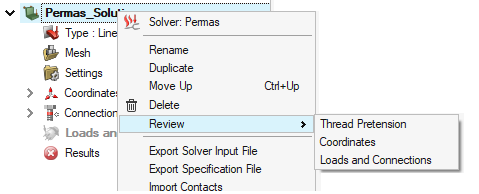

In the solution options, we have included this feature under "Review | Thread Pretension" when right-clicking on the solution name.

Note: This feature is supported for both Abaqus and Permas solvers.
