Analysis Review Tools: Solid Pretension

Introduction

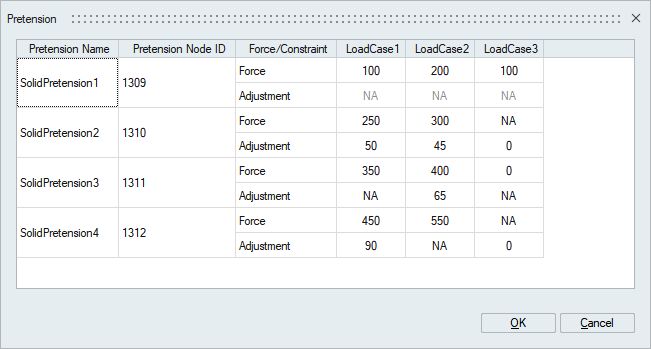

The review tool for Solid Pretension displays the magnitude of pretension force, adjustment value and the pretension node id in a tabular form.

Steps

1. Right click on Solid pretension in LBC browser to open review tool for Solid pretension.
2. This tool can be used to review and edit the variation of pretension force and adjustment values in each load case.
3. If we select the solid pretension, it will highlight the respective entities in GUI.
