Analysis Review Tools: Radiation

Introduction

The review tool for Radiation displays the magnitude of temperature, emissivity and the amplitude table information in a tabular form.

Steps

1. Right click on Radiation in LBC browser to open review tool for Radiation.

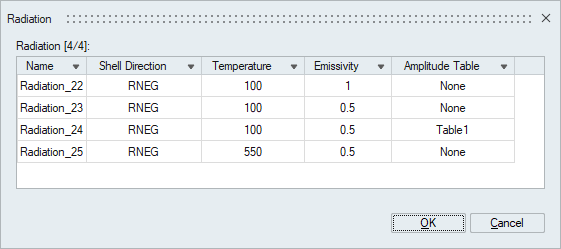

2. Selecting the radiation name in the table will highlight the entities of radiation in GUI.
3. We can edit the radiation parameters in this table.

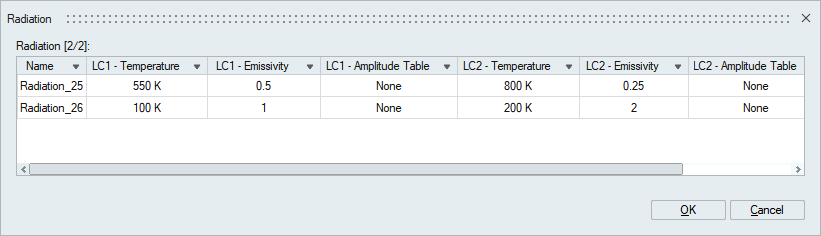

4. If loadcases are present, this tool will list the radiation parameters with respect to each loadcase. This behavior is currently supported for Abaqus solver only.
