Analysis Review Tools: Coordinate

Introduction

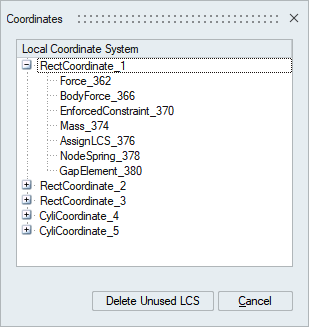

The review tool for Coordinate lists down the local coordinate systems. Also loads that are defined in that coordinate system will be listed in a tree view format.

Steps

1. Right click on Coordinates in LBC / Solution browser to open review tool for coordinates.

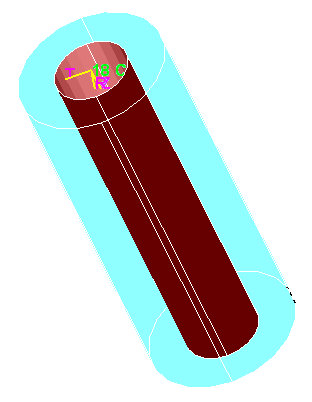

2. Selecting the Coordinates name in the tree will highlight the entities of load in GUI.
3. If we select the loads under coordinates, it will highlight the respective entities in GUI.
