Analysis Review Tools: Convection

Introduction

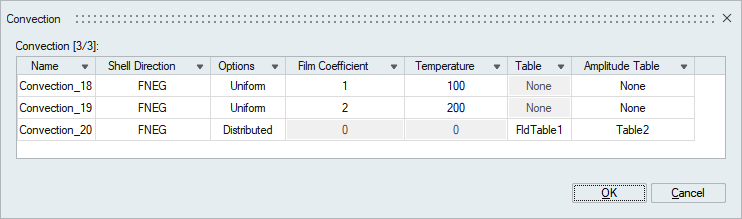

The review tool for Convection displays the magnitude of temperature, film coefficient, distributed table and the amplitude table information in a tabular form.

Steps

1. Right click on Convection in LBC browser to open review tool for convection.
2. Selecting the convection name in the table will highlight the entities of convection in GUI.
3. We can edit the convection parameters in this table.

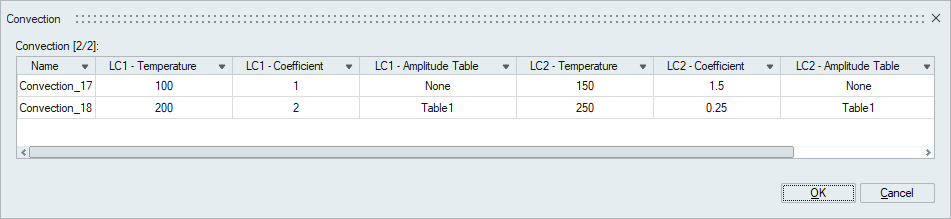

4. If loadcases are present, this tool will list the convection parameters with respect to each loadcase. This behavior is currently supported for Abaqus solver only.
