Creating a New Application

A user with a Designer role can create new applications to folders or subfolders to which they have permission.

On the Applications tab:
- Click on the toolbar
- Right-click on a folder or subfolder and select New Application.

  The New Application dialog displays.

Enter the Name of the application and click

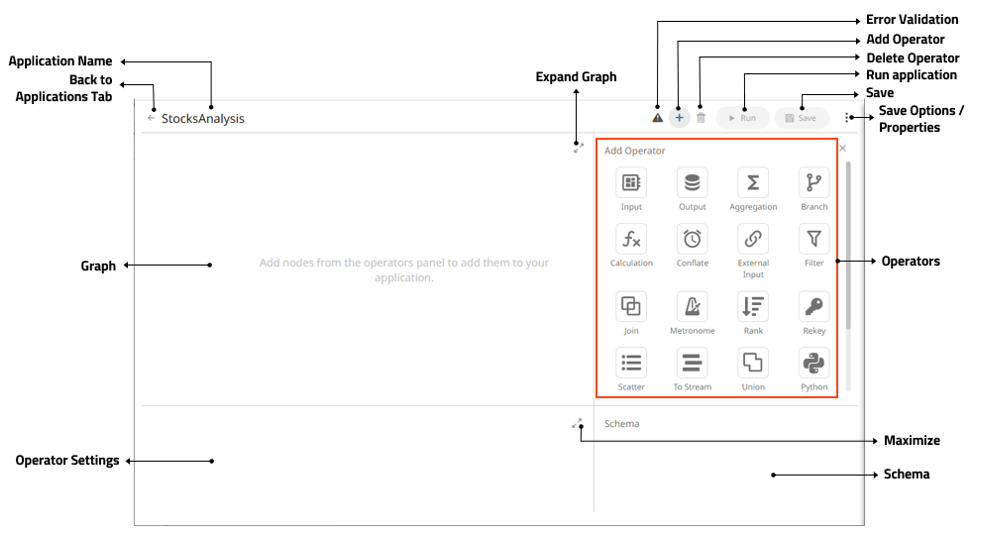

The Application page displays with the following sections. Initially, the Operator Settings pane is displayed.

Section/Pane	Description
Application Name	Name of the application. Click the button to go back to the Applications listing page.
Expand Graph	Expands the Graph pane.
Error Validation	After saving the changes in the application, this allows error validation. If there are definition issues (red node) or if there is no traffic on the topic (yellow node), you can click to help fix the errors. If there are no issues, is no longer displayed in the Application page.
Add Operator	When enabled , displays the Add Operator pane and allows operators to be added in the application. Click to close the Add Operator pane.
Delete Operator	Deletes the selected operator.
Run Application	Runs or executes an application.
Save	Saves the changes made in the Application page.
Save Options and Properties	Allows saving of changes made in the application or saving another copy. The application properties are also displayed and allows adding new ones.
Graph	Display the nodes and edges of the application model. It allows single node selection.
Operators	Available operators that can be added in the application.
Operator Settings	When an operator has been added or a node is selected in the application graph, the corresponding operator settings are displayed in the Operator Settings pane to allow editing. When the application is running, the operator settings are displayed but are not editable.
Maximize	Expands the Operator Settings pane.
Schema	Displays the preview of the data.
