Adding an External Input

Sources data directly from a Kafka topic.

  1. On the Application page, click   and select External_Input   in the Add Operator pane.

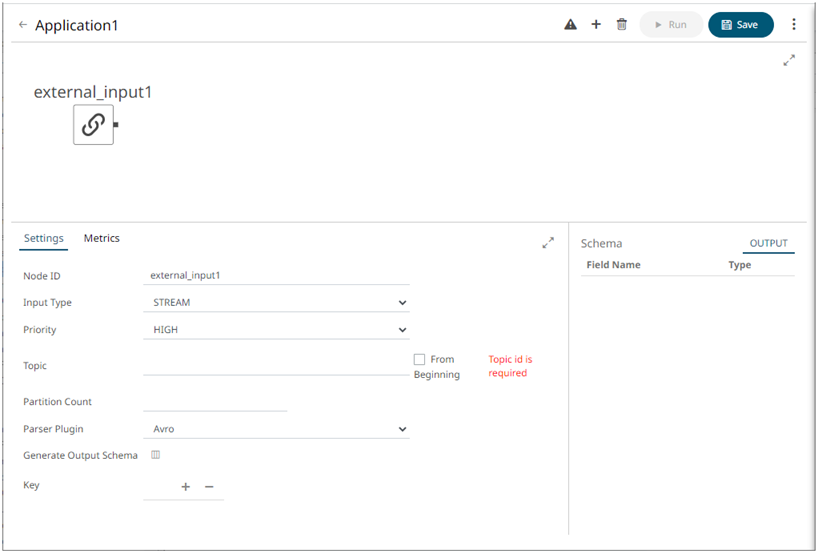

    The External Input node    icon displays in the Graph pane, as well as the properties to be defined in the Operator Settings pane, and the preview of the data in the Schema pane.

    This operator serves as the initial source of the data in the application. The right (outbound) edge allows you to connect to other operators.

  2. In the Operator Settings pane, define or select the following required properties:
    Property Description

    Node ID

    The ID of the external input operator.

    Input Type

    Select the input type: STREAM, TABLE, or GLOBAL_TABLE.

    Priority

    Select the priority of the node’s startup:

    • APPLICATION – running and successful completion of the node is critical in the application
      startup.

    • HIGHEST – highest priority but not critical.

    • HIGH (Default) – high priority but not critical.

    • STANDARD – standard priority.

    • LOW – low priority.

    Topic

    The stream of records or input you will be subscribed to.

    From Beginning

    Select the check box  to retrieve full history (from beginning to the latest) of the topic. If not selected, only the latest messages after the application has started will be retrieved.

    Partition Count

    Enter the number of partitions for the Kafka topics that will be created for the External Input operator.

    Partitions allow you to parallelize a topic by splitting the data in a particular topic across multiple brokers wherein, each partition can be placed on a separate machine to allow for multiple consumers to read from a topic in parallel.

    NOTE: The External Input topic pulls the default partition count from the provided topic meta with generate schema call.


    NOTE: Node ID, Input Type, and Topic properties are required.

  3. Select the Parser Plugin:
    • Avro

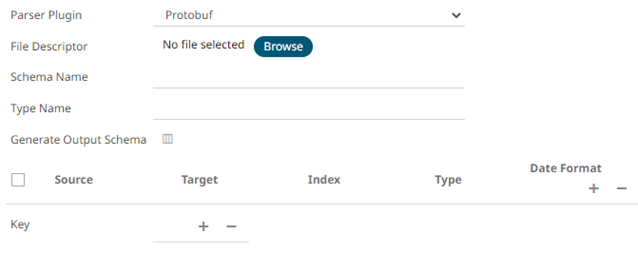

    • Protobuf

      Click  to select the File Descriptor (.desc file) in the Open dialog.

      Then enter the Schema Name and Type Name.

      Property Description

      Schema Name

      The Protobuf schema.

      Type Name

      The message of Protobuf type that will be sent to Kafka.

      File Descriptor

      The FileDescriptorSet which:

      • Is an output of the protocol compiler.

      • Represents a set of .proto files, using the --descriptor_set_out option.

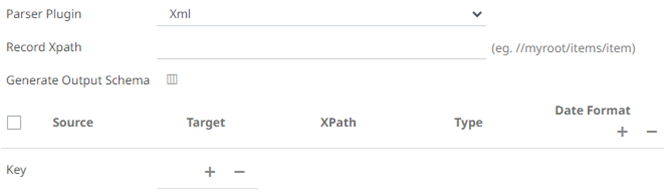

    • XML

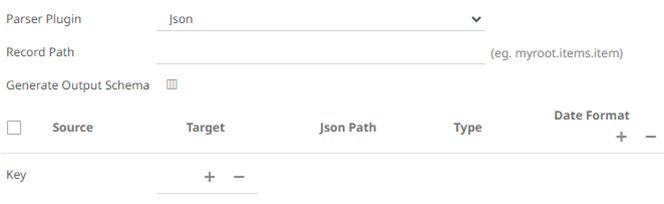

    • JSON

    • Text

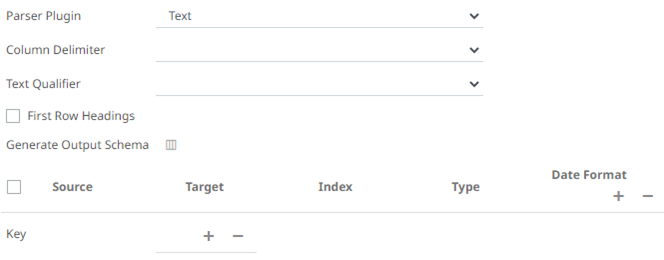

      If Text has been selected, confirm the Column Delimiter and Text Qualifier, and if the first row of the message includes column headings.

  4. You can also click the following icons:
    Button Description

    Add a new field entry.

    Select the check box of a field entry and click   to delete.

    Fetch the schema of the output topic. This populates the list of columns, with the data type found from inspecting the first ‘n’ rows of the file.



  5. Enter or select the following properties:
    Property Description

    Source

    The column name of the source schema.

    Target

    The column name of the target schema.

    XPath/Json Path/Index

    The column name of the target schema.

    Type

    The data type of the column. Can be: BOOLEAN, DATE, DATETIME, DOUBLE, FLOAT, INT, LONG, STRING, TIME.

    Date Format

    Date/Time format when the data type is DATE, DATETIME, or TIME.

  6. In the Key section, click   to add a key column from the data source schema. Repeat to add more.

    You can also delete a key column in the list by selecting its check box and clicking .

  7. Save the changes.
