Visualization Header Controls

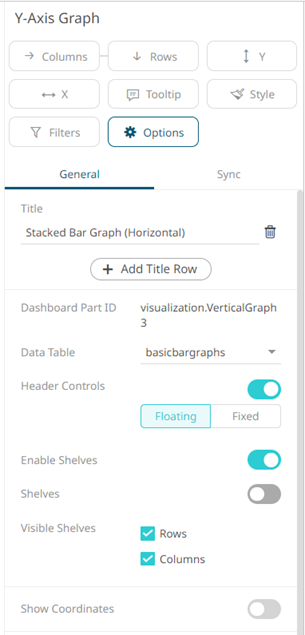

Header controls are made available in visualizations when the Header Controls option is turned on.

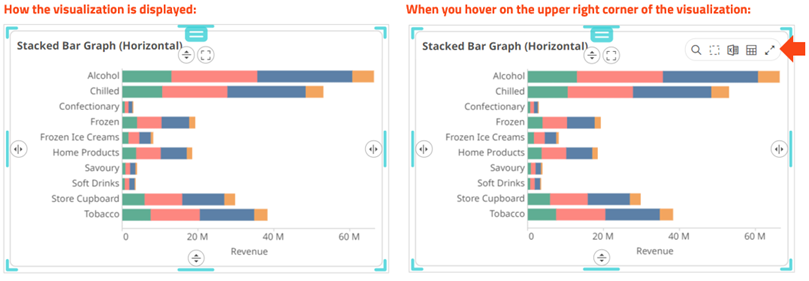

By default, it is set to Floating option. The header controls are displayed when you hover on the upper right corner of the visualization.

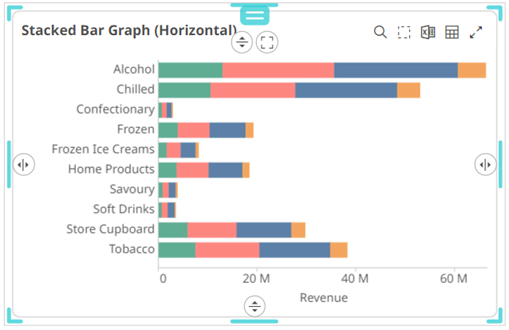

To always display the header controls, select the Fixed option.
Header controls may include:
| Header Control | Description |
|
Allows zooming in on multiple items of interest in a visualization. |
|
|
Allows multiple items in a visualization to be selected or lassoed. |
|
|
Export Excel |
Exports static visualizations to a CSV-format file. Click the Export Excel |
|
Displays a visualization as a table and vice versa. |
|
|
Maximizes the visualization to be displayed on the full dashboard area. |
icon of a snapshot visualization. A copy of the CSV-format tile is downloaded.
