Creating a Sequential or Diverging Numeric Color Palette in the Workbook

Panopticon visualizations support two types of Numeric Color Palettes: Sequential and Diverging.

• Sequential Color Palettes

  Sequential palettes use a two-color gradient between a minimum and a maximum value. Numeric column containing only positive values default to a Sequential Palette using the White-Blue color palette.

  In this case the range Mid point is disabled, and the Min and Max points are populated with defaults from the data set.

• Diverging Color Palettes

  Diverging Palettes use a three-color gradient between a minimum, middle and a maximum value. Numeric columns containing both positive and negative values default to the Diverging Palette with the Red White Blue color palette selected.

  Diverging Palettes use the Range Midpoint. The Min, Mid, and Max points are populated with defaults from the data set.

To create a new sequential numeric color palette:

1. On the Sequential section, click the Add Palette   icon.

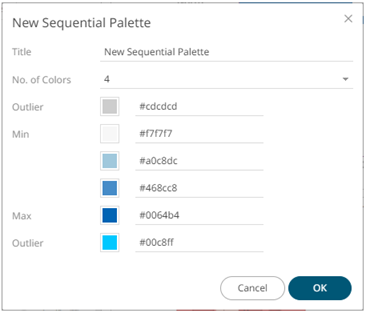

   The New Sequential Palette dialog displays.



2. Enter the Title and click  .
3. Select the Number of Colors in the drop-down list. Default is 4 colors.

   The number of colors from Min to Max is updated accordingly.

4. To set the Outliers, Min, and Max colors, you can do one of the following:
   • Click the Color box to display the Color dialog and set the Hex color code, RGB, or HSL value



   • Enter the Hex color code



   • Enter the HTML color name



5. Click  .

   The new sequential numeric color palette is added to the list. Note that it is already included and can be modified, duplicated, and deleted.



To create a new diverging numeric color palette:

1. On the Diverging section, click the Add Palette   icon.

   The New Diverging Palette dialog displays.



2. Enter the Title and click  .
3. Select the Number of Colors in the drop-down list. Default is 7 colors.

   The number of colors from Min, Mid, to Max is updated accordingly.

4. Set the Outliers, Min, and Max colors. Click the Color box to display the Color dialog and set the colors or enter the Hex color code.
5. Click  .

   The new diverging numeric color palette is added to the list. Note that it is already included and can be modified, duplicated, and deleted.
